System Design: ChatGPT-Style LLM Service (Serving, Caching, Safety)

Goal: low‑latency, high‑availability text generation (and tools) with safety, rate limiting, and observability.

Requirements

  • Streaming tokens (<200 ms first token), batch throughput, multi‑tenant quotas, session history, tool use (functions), file/RAG.

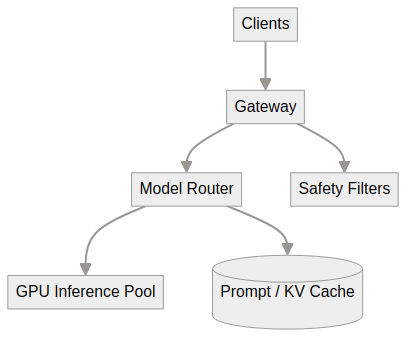

Architecture overview

Clients → API Gateway (AuthN/Z, rate limit, quotas)
  → Orchestrator (routing, context mgmt, tool calls)
    → Inference Fleet (GPU/TPU)  → KV Cache (paged attention)
    → Safety Filters (pre/post)
    → Retrieval (vector store, doc store) via RAG
  → Event Bus (telemetry)

Inference serving

  • Models sharded across GPUs with tensor/pipe parallel; batching/scheduling for high utilization.
  • KV cache reuse across turns; paged‑attention cache in GPU/host memory tiers.
  • Multi‑model routing (cost/latency/quality); fallback to smaller models under load.

Context and tools

  • Conversation store (compressed) with truncation strategies; tools/plugins invoked via JSON schemas.
  • Function calling: orchestrator validates args; tool sandbox with timeouts and quotas.

Retrieval (RAG)

  • Embeddings service builds vectors for docs; chunking + metadata; ANN index (HNSW/IVF‑PQ).
  • At query time: recall top‑k, re‑rank, synthesize context; guard context length with budgeters.

Caching and dedup

  • Prompt/result cache (normalized input) for deterministic prompts; stage caches (embedding, retrieval, decode prefixes).
  • Safety: never cache sensitive PII; encrypt at rest.

Safety and policy

  • Pre‑filters (regex/keyword/ML) and post‑filters (classifier) for harmful content; red teaming and appeals.
  • Audit logs of prompts/outputs; data retention policies per tenant.

Observability and reliability

  • Token‑level metrics (TTFT, TPS, errors); autoscaling; circuit breakers; brownout mode (shorter max tokens) under load.

APIs

POST /v1/chat/completions { model, messages[], tools?, tool_choice? }
POST /v1/embeddings { model, input }

Capacity planning

  • Target: 100k concurrent sessions, TTFT < 200 ms, 50 tokens/s median decode.
  • GPU math: model needs 40 GB per replica; with paged‑attention, cache ~128k tokens/GPU; plan cache tiers (GPU/HBM → CPU RAM → SSD) with eviction.
  • Routing: batch size 8–16 to keep utilization > 60% without harming latency; autoscale on queue depth and TTFT SLO.

SLOs & safety

  • SLOs: TTFT, tokens/sec, error rate; budget enforces brownouts (max tokens cap) when violated.
  • Safety: pre/post filters with allow/deny lists; privacy guardrails per tenant; audit retention limits.

Failure modes

  • GPU node loss: retry to alternate pool; preserve cache keys when possible; degrade to smaller model if capacity constrained.
  • RAG backends slow: fall back to last known context or skip retrieval with warning tag.

Detailed APIs

POST /v1/chat/completions { model, messages[], tools?, tool_choice?, stream? }
event: chunk  data: { role, delta, usage? }

Orchestrator design

  • Router selects model/pool; KV cache coordinator attaches cache id; streaming gateway multiplexes SSE chunks.
  • Tooling: JSON schema validation and safe tool sandbox with timeouts; retries with circuit breaker per tool.

Capacity BoE

  • 100k concurrent streams @ 50 tok/s → 5M tok/s; plan GPU count for model throughput; batch size 8–16.
  • KV cache: 128k tokens/GPU tier; promote hot sessions; evict with LRU per tenant.

Testing & eval

  • Load gen with mixed prompts/tools; TTFT SLO monitors; shadow deploys for new model versions with guardrails.

What Interviewers Look For

LLM/AI Systems Skills

  1. Inference Optimization
    • GPU/TPU utilization
    • Batching strategies
    • KV cache management
    • Red Flags: Poor GPU utilization, no batching, inefficient caching
  2. Latency Optimization
    • Time-to-first-token (TTFT) < 200ms
    • Streaming architecture
    • Paged attention
    • Red Flags: High latency, no streaming, poor TTFT
  3. Model Serving
    • Multi-model routing
    • Fallback strategies
    • Auto-scaling
    • Red Flags: Single model, no fallback, poor scaling

Distributed Systems Skills

  1. Caching Strategy
    • Prompt/result caching
    • KV cache tiers
    • Cache eviction policies
    • Red Flags: No caching, poor strategy, cache misses
  2. RAG Architecture
    • Vector search
    • Embedding generation
    • Context management
    • Red Flags: No RAG, inefficient search, context overflow
  3. Safety & Policy
    • Pre/post filters
    • Content moderation
    • Audit logging
    • Red Flags: No safety, no moderation, no audit

Problem-Solving Approach

  1. Cost Optimization
    • GPU cost management
    • Cache efficiency
    • Model selection
    • Red Flags: High costs, no optimization, inefficient
  2. Edge Cases
    • GPU failures
    • RAG backend slow
    • Cache misses
    • Red Flags: Ignoring edge cases, no handling
  3. Trade-off Analysis
    • Latency vs cost
    • Quality vs speed
    • Red Flags: No trade-offs, dogmatic choices

System Design Skills

  1. Component Design
    • Orchestrator
    • Inference fleet
    • Safety filters
    • Red Flags: Monolithic, unclear boundaries
  2. Observability
    • Token-level metrics
    • SLO monitoring
    • Circuit breakers
    • Red Flags: No metrics, no monitoring, no observability
  3. Reliability
    • Auto-scaling
    • Brownout mode
    • Graceful degradation
    • Red Flags: No scaling, no degradation, poor reliability

Communication Skills

  1. LLM Architecture Explanation
    • Can explain inference serving
    • Understands caching strategies
    • Red Flags: No understanding, vague explanations
  2. Performance Explanation
    • Can explain latency optimization
    • Understands cost trade-offs
    • Red Flags: No understanding, vague

Meta-Specific Focus

  1. AI/ML Systems Expertise
    • Deep LLM knowledge
    • Inference optimization
    • Key: Show AI/ML systems expertise
  2. Performance & Cost Balance
    • Latency optimization
    • Cost efficiency
    • Key: Demonstrate performance/cost balance
