System Design: Twitter (Timeline, Fanout, Search, Trends)

Goal: newsfeed of short posts with follows, likes/retweets, media, search, and trends, at massive read/write scale with low latency.

Requirements

  • Functional: post tweet (text/media), follow/unfollow, home timeline, user timeline, likes/retweets/replies, search, trends, notifications.
  • Non‑functional: P95 read < 200 ms, write < 500 ms; HC read skew; hot‑key protection; multi‑region DR.

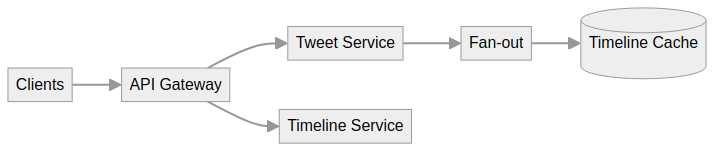

High‑level architecture

Clients → API Gateway → (Auth, Rate‑Limit)
  ├─ Tweet Write Service → Tweets Store (Cassandra/S3) → Media Store (S3/CDN)
  ├─ Fanout Service (to caches/queues)
  ├─ Timeline Read Service → Redis/Timeline Cache → Tweets Store
  ├─ Graph Service (Follows) → Graph DB/Cache
  ├─ Engagements (Likes/RT) → Counters Store (Redis/CRDT + Cassandra)
  └─ Search Indexer → Kafka → Elastic/OpenSearch

Data model

  • Tweets: tweet_id (KS), user_id, ts, text, media, counters in wide‑column store; payload persisted to S3 for cold.
  • Follows graph: adjacency lists in KV (sorted sets) + caching.
  • Timelines: precomputed home timelines in Redis lists (fanout‑to‑cache), fallback to on‑read merge.

Write path

1) Validate/auth, create tweet row (idempotency key), enqueue to Kafka. 2) Fanout: for users with small follower counts, push tweet_id into each follower’s home list (Redis). For super‑users, mark as pull‑on‑read. 3) Index into search; media to CDN.

Read path (Home timeline)

1) Read tweet_ids from home list (Redis). On cache miss or pull‑user, merge K sorted lists (followees) from Timeline Store. 2) Hydrate tweets from Tweets Store; batch get; enrich counters from Redis; return.

Hot key and super‑user strategy

  • Hybrid fanout: push for normal, pull for super‑users; also use sharded queues and backpressure.
  • Token buckets per user; coalesce duplicate writes; cache stampede protection with single‑flight.

Counters (likes/retweets)

  • Redis sharded counters with periodic flush to Cassandra; CRDT (G‑Counter) across regions.
  • Ingest to Kafka → consumers update inverted index (Elastic/OpenSearch) with fields (text, hashtags, user).
  • Trends: streaming aggregations on hashtag counts per geo/window (Flink/Beam) with anomaly detection.

Moderation and abuse

  • ML classifiers for spam/toxicity; shadow bans; rate‑limits; IP/device reputation; human review queue.

Multi‑region

  • Active‑active reads; active‑passive writes for tweets; CRDT counters; asynchronous index replication.

APIs

POST /v1/tweets { text, media_ids[] }
GET  /v1/timeline/home?cursor=...
GET  /v1/timeline/{user}
POST /v1/tweets/{id}/like

Testing/observability

  • Canary releases; tail latency alarms; cardinality‑aware dashboards; chaos on fanout queues.

Capacity & back‑of‑the‑envelope

  • Assumptions: 200M MAU, 20M DAU, 2M peak QPS reads, 50k peak TPS writes.
  • Average tweet 280 bytes + metadata → ~0.5–1 KB/tweet in KV (excl. media). Daily 50M tweets → ~50 GB/day (hot store), archive to S3.
  • Home timeline: 100 tweets/page; Redis list node ~60 bytes → per user cache ~6 KB for head; for 20M DAU cached head ~120 GB across shards.
  • Fanout workers: if avg fanout 200 followers/tweet, 50k TPS → 10M inserts/s naive; hybrid push/pull to keep inserts <2M/s, remainder pulled on read.

SLOs & error budgets

  • Home timeline P95 < 200 ms; Tweet publish ACK P95 < 500 ms; Availability 99.9%.
  • Budget resets per 30 days; protect with circuit breakers on fanout and single‑flight cache.

Consistency & trade‑offs

  • Eventual consistency for timelines and counters; strong consistency on tweet write path (idempotency key, single writer per tweet id).
  • Read repairs during hydration; monotonic timeline per user using per‑followee cursors.

Bottlenecks & mitigations

  • Super‑user hot keys: switch to pull, sample followers for push; cache pinning + request coalescing.
  • Search indexing lag: prioritize fresh content pipeline; separate cold backfills.

Evolution plan

  • Phase 1: push‑only for small scale; Phase 2: hybrid fanout with on‑read merge; Phase 3: multi‑region with CRDT counters and geo‑proximal reads.

Detailed APIs (sample)

POST /v1/tweets { text, media_ids[], reply_to?, audience? } -> { id }
GET  /v1/timeline/home?cursor=... -> { items:[{tweet_id, user, text, media, counters}], next_cursor }
POST /v1/tweets/{id}/like -> 204

Data model (DDL sketch)

CREATE TABLE tweets (
  tweet_id bigint PRIMARY KEY,
  user_id bigint NOT NULL,
  ts timestamp NOT NULL,
  text text,
  media jsonb,
  visibility smallint,
  attrs jsonb
);
CREATE TABLE timeline_items (
  user_id bigint,
  tweet_id bigint,
  ts timestamp,
  PRIMARY KEY (user_id, tweet_id)
);

Capacity math (BoE)

  • Home timeline read 2M QPS p95 200 ms → Redis cluster of N shards each ~150k QPS; cache size ~120 GB for heads.
  • Storage: 50M tweets/day @1 KB → 50 GB/day; 2‑year hot tier ~36 TB (before compression).

Consistency matrix

  • Tweet create: strong (single writer, idempotency key)
  • Timeline insert: eventual; reconcile on read with per‑followee cursors
  • Counters: eventual with periodic flush to base store

Failure drill runbook

  • Fanout backlog > threshold → switch heavy authors to pull, throttle enrichment, shed “who to follow”.
  • Redis shard hot → enable request coalescing, migrate keys, temporarily reduce page size.

Testing plan

  • Load tests with mixed read/write and super‑user spikes; chaos on fanout queue; cache stampede simulations.

What Interviewers Look For

Social Media Feed Skills

  1. Timeline Generation
    • Fan-out vs pull strategy
    • Hybrid approach for super-users
    • Cache optimization
    • Red Flags: Push-only, no pull strategy, cache stampedes
  2. Hot Key Handling
    • Super-user strategies
    • Request coalescing
    • Cache pinning
    • Red Flags: No hot key handling, cache stampedes, poor performance
  3. Counter Management
    • Likes/retweets counters
    • CRDT for multi-region
    • Periodic flush to DB
    • Red Flags: Inconsistent counters, no CRDT, race conditions

Distributed Systems Skills

  1. Read/Write Optimization
    • Read-heavy optimization
    • Write path efficiency
    • Red Flags: Poor read performance, slow writes, bottlenecks
  2. Multi-Region Design
    • Active-active reads
    • CRDT counters
    • Geo-proximal reads
    • Red Flags: Single region, no replication, high latency
  3. Search & Trends
    • Real-time indexing
    • Streaming aggregations
    • Red Flags: Slow indexing, no trends, poor search

Problem-Solving Approach

  1. Scale Challenges
    • Super-user fanout
    • Hot key protection
    • Cache optimization
    • Red Flags: No scale consideration, bottlenecks, poor performance
  2. Edge Cases
    • Fanout backlog
    • Cache stampedes
    • Search lag
    • Red Flags: Ignoring edge cases, no handling
  3. Trade-off Analysis
    • Consistency vs latency
    • Push vs pull
    • Red Flags: No trade-offs, dogmatic choices

System Design Skills

  1. Component Design
    • Tweet service
    • Fanout service
    • Timeline service
    • Red Flags: Monolithic, unclear boundaries
  2. Caching Strategy
    • Timeline caching
    • Counter caching
    • Cache stampede protection
    • Red Flags: No caching, poor strategy, stampedes
  3. Moderation & Abuse
    • ML classifiers
    • Rate limiting
    • Human review
    • Red Flags: No moderation, abuse issues, no safety

Communication Skills

  1. Feed Architecture Explanation
    • Can explain fan-out strategy
    • Understands hot key handling
    • Red Flags: No understanding, vague explanations
  2. Scale Explanation
    • Can explain scaling strategies
    • Understands bottlenecks
    • Red Flags: No understanding, vague

Meta-Specific Focus

  1. Social Media Expertise
    • Feed generation knowledge
    • Scale understanding
    • Key: Show social media expertise
  2. Performance & Scale Balance
    • Low latency design
    • High throughput
    • Key: Demonstrate performance/scale balance
