Design a Blob Storage System Like S3: Distributed Object Storage

Introduction

Object storage (blob storage) is a fundamental building block of modern cloud infrastructure. Systems like Amazon S3, Azure Blob Storage, and Google Cloud Storage handle exabytes of data, billions of objects, and millions of requests per second while maintaining 99.999999999% (11 9’s) durability.

This post designs a scalable blob storage system that can handle massive scale, ensure data durability, and provide high availability while maintaining low latency and cost efficiency.

Requirements
- Functional Requirements
- Non-Functional Requirements
Capacity Estimation
Core Entities
API
Data Flow
Database Design
- Schema Design
- Database Sharding Strategy
High-Level Design
Deep Dive

Requirements

Functional Requirements

Object Operations
- PUT: Upload objects (files) with metadata
- GET: Download objects
- DELETE: Delete objects
- LIST: List objects in a bucket/prefix
- HEAD: Get object metadata without downloading
Bucket Management
- Create/delete buckets (containers)
- List buckets
- Set bucket policies and ACLs
Metadata Management
- Store object metadata (size, content-type, etag, timestamps)
- Custom metadata (key-value pairs)
- Versioning support
Access Control
- Authentication (API keys, IAM)
- Authorization (ACLs, bucket policies)
- Signed URLs for temporary access

Non-Functional Requirements

Durability: 99.999999999% (11 9’s) - lose 1 object per 10,000 years
Availability: 99.99% uptime (4 9’s)
Scalability: Handle exabytes of data, billions of objects
Throughput: Millions of requests per second
Latency: < 100ms for metadata operations, < 1s for object retrieval
Cost Efficiency: Optimize storage and bandwidth costs
Consistency: Eventually consistent (or strong consistency option)

Capacity Estimation

Storage Scale

Total Storage: 100+ exabytes
Objects: 100+ billion objects
Average Object Size: 1MB (ranges from bytes to 5TB)
Daily Uploads: 1 billion objects = 1PB/day
Daily Downloads: 10 billion objects = 10PB/day

Request Scale

Read Requests: 100M requests/second (peak)
Write Requests: 10M requests/second (peak)
Metadata Operations: 200M operations/second (peak)

User Scale

Active Users: 10 million
Concurrent Users: 1 million
Buckets: 100 million buckets

Core Entities

Bucket

Attributes: bucket_id, bucket_name, owner_id, region, created_at, policy, acl
Relationships: Contains objects, belongs to user

Object

Attributes: object_id, bucket_id, key, size, content_type, etag, version_id, created_at, updated_at
Relationships: Belongs to bucket, has metadata, has versions

Object Metadata

Attributes: metadata_id, object_id, key, value, created_at
Relationships: Belongs to object

Object Version

Attributes: version_id, object_id, version_number, is_latest, created_at
Relationships: Belongs to object

API

PUT Object (Upload)

PUT /{bucket}/{key}
Headers:
  - Content-Type: application/json
  - Content-Length: 1024
  - x-amz-meta-custom-key: custom-value
Body: [object data]

Response: 200 OK
Headers:
  - ETag: "d41d8cd98f00b204e9800998ecf8427e"
  - x-amz-version-id: version-id

GET Object (Download)

GET /{bucket}/{key}
Headers:
  - Range: bytes=0-1023 (optional)

Response: 200 OK
Headers:
  - Content-Type: application/json
  - Content-Length: 1024
  - ETag: "d41d8cd98f00b204e9800998ecf8427e"
  - Last-Modified: Wed, 01 Jan 2025 12:00:00 GMT
Body: [object data]

DELETE Object

DELETE /{bucket}/{key}

Response: 204 No Content

LIST Objects

GET /{bucket}?prefix=photos/&max-keys=1000&marker=photos/photo-100.jpg

Response: 200 OK
{
  "Contents": [
    {
      "Key": "photos/photo-1.jpg",
      "Size": 1024,
      "LastModified": "2025-01-01T12:00:00Z",
      "ETag": "etag-1"
    }
  ],
  "IsTruncated": false,
  "NextMarker": null
}

HEAD Object (Get Metadata)

HEAD /{bucket}/{key}

Response: 200 OK
Headers:
  - Content-Type: application/json
  - Content-Length: 1024
  - ETag: "d41d8cd98f00b204e9800998ecf8427e"
  - Last-Modified: Wed, 01 Jan 2025 12:00:00 GMT
  - x-amz-meta-custom-key: custom-value

Data Flow

PUT Object (Upload) Flow

Client uploads object → API Gateway
API Gateway → Metadata Service (validate bucket, permissions)
Metadata Service → Storage Service (get storage node locations)
Storage Service → Storage Nodes (write object data)
Storage Nodes → Replication Service (replicate to other nodes)
Storage Service → Metadata Service (confirm write success)
Metadata Service → Metadata Database (store object metadata)
Metadata Service → API Gateway (return success with ETag)
API Gateway → Client (return response)

GET Object (Download) Flow

Client requests object → API Gateway
API Gateway → Metadata Service (get object metadata)
Metadata Service → Metadata Database (query metadata)
Metadata Service → Storage Service (get object location)
Storage Service → Storage Nodes (read object data)
Storage Nodes → Storage Service (return object data)
Storage Service → API Gateway (stream object data)
API Gateway → Client (return object)

LIST Objects Flow

Client requests list → API Gateway
API Gateway → Metadata Service
Metadata Service → Metadata Database (query objects by prefix)
Metadata Database → Metadata Service (return object list)
Metadata Service → API Gateway (return paginated results)
API Gateway → Client (return object list)

Database Design

Schema Design

Buckets Table:

CREATE TABLE buckets (
    bucket_id VARCHAR(36) PRIMARY KEY,
    bucket_name VARCHAR(255) UNIQUE NOT NULL,
    owner_id VARCHAR(36) NOT NULL,
    region VARCHAR(50) NOT NULL,
    created_at TIMESTAMP,
    policy JSON,
    acl JSON,
    INDEX idx_owner_id (owner_id),
    INDEX idx_bucket_name (bucket_name)
);

Objects Table:

CREATE TABLE objects (
    object_id VARCHAR(36) PRIMARY KEY,
    bucket_id VARCHAR(36) NOT NULL,
    key VARCHAR(1024) NOT NULL,
    size BIGINT NOT NULL,
    content_type VARCHAR(255),
    etag VARCHAR(64) NOT NULL,
    version_id VARCHAR(36),
    is_latest BOOLEAN DEFAULT TRUE,
    created_at TIMESTAMP,
    updated_at TIMESTAMP,
    UNIQUE KEY unique_bucket_key_version (bucket_id, key, version_id),
    INDEX idx_bucket_key (bucket_id, key),
    INDEX idx_bucket_prefix (bucket_id, key(255)),
    FOREIGN KEY (bucket_id) REFERENCES buckets(bucket_id)
);

Object Metadata Table:

CREATE TABLE object_metadata (
    metadata_id VARCHAR(36) PRIMARY KEY,
    object_id VARCHAR(36) NOT NULL,
    meta_key VARCHAR(255) NOT NULL,
    meta_value TEXT,
    created_at TIMESTAMP,
    INDEX idx_object_id (object_id),
    FOREIGN KEY (object_id) REFERENCES objects(object_id)
);

Database Sharding Strategy

Shard by Bucket ID:

Buckets and their objects on same shard
Enables efficient bucket operations
Use consistent hashing for distribution

Partition Objects Table:

Partition by bucket_id for large buckets
Enables parallel queries within bucket

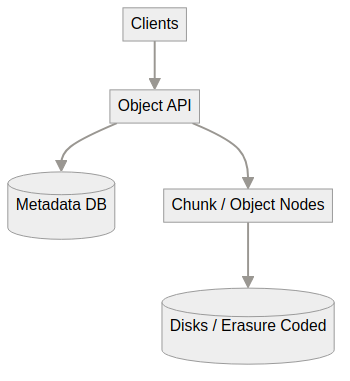

High-Level Design

┌─────────────────────────────────────────┐
│         Client Applications             │
│    (REST API, SDK, CLI Tools)          │
└──────────────┬──────────────────────────┘
               │
               │ HTTPS
               │
┌──────────────▼──────────────────────────┐
│         Load Balancer / API Gateway     │
└──────────────┬──────────────────────────┘
               │
       ┌───────┴───────┐
       │               │
┌──────▼──────┐  ┌─────▼──────┐
│  Metadata   │  │  Storage   │
│   Service   │  │   Service  │
│  (Metadata  │  │  (Object   │
│   DB)       │  │   Storage)  │
└─────────────┘  └────────────┘
       │               │
       │               │
┌──────▼──────┐  ┌─────▼──────┐
│  Metadata   │  │  Storage    │
│  Database   │  │   Nodes     │
│ (Cassandra) │  │ (Distributed│
│             │  │   Disks)    │
└─────────────┘  └────────────┘

Core Components

API Gateway / Load Balancer: Routes requests, handles authentication
Metadata Service: Manages object metadata, bucket information
Storage Service: Handles actual object storage and retrieval
Metadata Database: Stores metadata (Cassandra, DynamoDB)
Storage Nodes: Physical storage servers with disks
Replication Service: Ensures data durability through replication
Monitoring & Analytics: System health and usage metrics

Deep Dive

Component Design

1. API Gateway / Load Balancer

Responsibilities:

Request routing to appropriate services
Authentication and authorization
Rate limiting and throttling
Request/response transformation
SSL/TLS termination

Features:

RESTful API (S3-compatible)
Request signing (HMAC-SHA256)
CORS support
Request logging

Technology:

AWS API Gateway / Azure API Management
Envoy Proxy / NGINX
Custom API service

API Endpoints:

PUT /{bucket}/{key}          # Upload object
GET /{bucket}/{key}          # Download object
DELETE /{bucket}/{key}       # Delete object
HEAD /{bucket}/{key}         # Get metadata
GET /{bucket}?prefix={prefix} # List objects

2. Metadata Service

Responsibilities:

Object metadata management
Bucket management
Access control (ACLs, policies)
Versioning
Lifecycle management

Metadata Stored:

Object key (path)
Bucket name
Size (bytes)
Content-Type
ETag (MD5 hash)
Creation timestamp
Last modified timestamp
Storage location (node IDs)
Replication status
Custom metadata (key-value pairs)
Access control lists (ACLs)

API Operations:

Create/update/delete object metadata
List objects by prefix
Get bucket information
Manage ACLs and policies

Technology:

Microservice architecture
Stateless design
Horizontal scaling
Caching layer (Redis)

3. Metadata Database

Database Choice: Cassandra / DynamoDB

Why:

High write throughput
Horizontal scaling
Low latency reads
No single point of failure
Tunable consistency

Schema Design (Cassandra):

Objects Table:

CREATE TABLE objects (
    bucket_name TEXT,
    object_key TEXT,
    version_id UUID,
    size_bytes BIGINT,
    content_type TEXT,
    etag TEXT,
    created_at TIMESTAMP,
    modified_at TIMESTAMP,
    storage_nodes LIST<TEXT>,  -- Node IDs storing replicas
    replication_status TEXT,
    custom_metadata MAP<TEXT, TEXT>,
    acl_permissions MAP<TEXT, TEXT>,
    PRIMARY KEY ((bucket_name, object_key), version_id)
) WITH CLUSTERING ORDER BY (version_id DESC);

Buckets Table:

CREATE TABLE buckets (
    bucket_name TEXT PRIMARY KEY,
    owner_id TEXT,
    created_at TIMESTAMP,
    region TEXT,
    versioning_enabled BOOLEAN,
    lifecycle_policy TEXT,
    acl_permissions MAP<TEXT, TEXT>,
    custom_metadata MAP<TEXT, TEXT>
);

Indexes:

Secondary index on prefix for listing
Materialized view for common queries
Partition by bucket_name for locality

Consistency:

Write: QUORUM (2 of 3 replicas)
Read: QUORUM for strong consistency
Read: ONE for eventual consistency (faster)

Why Cassandra? Can We Use SQL Instead?

This is a critical design decision. Let’s analyze both options:

Why Cassandra is Preferred for Blob Storage Metadata:

Write-Intensive Workload
- Scale: 10M writes/second (peak)
- Cassandra: Optimized for high write throughput
  - Append-only writes (no updates in place)
  - No locking overhead
  - Sequential disk writes
- SQL: Struggles with high write throughput
  - Row-level locking creates contention
  - Index maintenance overhead
  - Transaction log writes add latency
Horizontal Scaling
- Cassandra: Built-in horizontal scaling
  - Add nodes, automatic data distribution
  - No manual sharding required
  - Linear scalability
- SQL: Vertical scaling + complex sharding
  - Sharding requires application logic
  - Cross-shard queries are complex
  - Rebalancing is difficult
No Complex Joins
- Blob Storage Queries: Simple lookups
  - Get object by bucket+key
  - List objects by prefix
  - No joins needed
- Cassandra: Perfect for simple queries
  - Fast key-based lookups
  - Efficient prefix queries
- SQL: Joins are powerful but unnecessary overhead
  - Join overhead not needed
  - Simpler queries = better performance
Flexible Schema
- Metadata: Varies by object type
  - Custom metadata (key-value pairs)
  - Different fields for different objects
- Cassandra: Schema flexibility
  - MAP, LIST, SET types
  - Easy to add new fields
- SQL: Rigid schema
  - Schema changes expensive
  - EAV pattern needed for flexible metadata
Multi-Region Support
- Cassandra: Multi-region replication
  - Built-in multi-datacenter support
  - Tunable consistency per region
- SQL: Complex multi-region setup
  - Requires replication solutions
  - Cross-region transactions are slow

When SQL Databases Can Work:

SQL databases (PostgreSQL, MySQL) can be used for blob storage metadata in certain scenarios:

✅ Suitable When:

Smaller Scale: < 1M writes/second
Strong Consistency Required: Need ACID transactions
Complex Queries: Need joins, aggregations, analytics
Team Familiarity: Team more comfortable with SQL
Existing Infrastructure: Already using SQL databases

SQL Schema Design (PostgreSQL):

-- Objects table
CREATE TABLE objects (
    bucket_name VARCHAR(255) NOT NULL,
    object_key VARCHAR(1024) NOT NULL,
    version_id UUID NOT NULL,
    size_bytes BIGINT NOT NULL,
    content_type VARCHAR(255),
    etag VARCHAR(64),
    created_at TIMESTAMP NOT NULL,
    modified_at TIMESTAMP NOT NULL,
    storage_nodes TEXT[],  -- Array of node IDs
    replication_status VARCHAR(50),
    custom_metadata JSONB,  -- Flexible metadata
    acl_permissions JSONB,
    PRIMARY KEY (bucket_name, object_key, version_id)
);

-- Indexes for common queries
CREATE INDEX idx_objects_bucket_key ON objects(bucket_name, object_key);
CREATE INDEX idx_objects_prefix ON objects(bucket_name, object_key text_pattern_ops);
CREATE INDEX idx_objects_created ON objects(created_at);

-- Buckets table
CREATE TABLE buckets (
    bucket_name VARCHAR(255) PRIMARY KEY,
    owner_id VARCHAR(255) NOT NULL,
    created_at TIMESTAMP NOT NULL,
    region VARCHAR(50),
    versioning_enabled BOOLEAN DEFAULT FALSE,
    lifecycle_policy JSONB,
    acl_permissions JSONB,
    custom_metadata JSONB
);

SQL Optimization Strategies:

Partitioning

-- Partition by bucket_name for better performance
CREATE TABLE objects (
    ...
) PARTITION BY HASH (bucket_name);

CREATE TABLE objects_bucket_0 PARTITION OF objects
    FOR VALUES WITH (MODULUS 4, REMAINDER 0);

Read Replicas
- Use read replicas for LIST operations
- Primary handles writes
- Replicas handle reads
Connection Pooling
- Use connection pools (PgBouncer)
- Reduce connection overhead
Caching
- Cache frequently accessed metadata in Redis
- Reduce database load

Trade-offs: SQL vs Cassandra

Aspect	Cassandra	SQL (PostgreSQL)
Write Throughput	Very High (10M+/sec)	High (1M/sec)
Read Latency	Low (< 10ms)	Low (< 10ms)
Horizontal Scaling	Easy (add nodes)	Complex (sharding)
Consistency	Tunable (eventual/strong)	Strong (ACID)
Complex Queries	Limited	Excellent (joins, SQL)
Schema Flexibility	High	Low (rigid)
Multi-Region	Built-in	Complex setup
Operational Complexity	Medium	Low (familiar)
Cost	Lower (commodity hardware)	Higher (vertical scaling)

Hybrid Approach:

Some systems use both:

Cassandra for Metadata
- High write throughput
- Simple lookups
- Horizontal scaling
SQL for Analytics/Reporting
- Complex queries
- Aggregations
- Business intelligence
Sync Between Systems
- ETL pipeline syncs data
- Cassandra → SQL for analytics
- Use appropriate tool for each use case

Recommendation:

For Large-Scale Blob Storage (S3-like): Use Cassandra
- High write throughput requirement
- Simple query patterns
- Need horizontal scaling
- Multi-region support
For Smaller Scale or Strong Consistency: Use SQL (PostgreSQL)
- < 1M writes/second
- Need ACID transactions
- Complex queries needed
- Team familiarity with SQL
For Best of Both Worlds: Use Hybrid
- Cassandra for metadata operations
- SQL for analytics/reporting
- Sync between systems

Real-World Examples:

Amazon S3: Uses DynamoDB (NoSQL) for metadata
Azure Blob Storage: Uses SQL Server for metadata (but with heavy optimization)
Google Cloud Storage: Uses Bigtable (NoSQL) for metadata

Most large-scale blob storage systems use NoSQL databases for metadata due to write throughput and scalability requirements.

4. Storage Service

Responsibilities:

Object storage and retrieval
Replication coordination
Data integrity verification
Storage node management

Architecture:

Stateless service layer
Routes requests to storage nodes
Handles replication logic
Manages erasure coding

Operations:

PUT: Store object, trigger replication
GET: Retrieve object from storage nodes
DELETE: Mark for deletion, garbage collection
Replication: Copy objects to multiple nodes

5. Storage Nodes

Physical Architecture:

Servers with multiple disks (HDD/SSD)
Network attached storage
Distributed across data centers

Node Responsibilities:

Store object chunks/blocks
Serve read requests
Report health status
Participate in replication

Storage Organization:

/storage/
  ├── node-001/
  │   ├── bucket1/
  │   │   ├── object1/chunk1
  │   │   ├── object1/chunk2
  │   │   └── object2/chunk1
  │   └── bucket2/
  └── node-002/
      └── ...

Object Storage Format:

Objects split into chunks (e.g., 64MB chunks)
Chunks stored on different nodes
Erasure coding for durability
Checksums for integrity

6. Data Durability & Replication

Replication Strategies

1. Multi-Copy Replication

Store N copies of each object (typically 3)
Copies stored on different nodes/data centers
Simple to implement and understand
Storage overhead: Nx (3x for 3 copies)

Example:

Object → Replicate to 3 nodes
  ├─ Node A (Data Center 1)
  ├─ Node B (Data Center 2)
  └─ Node C (Data Center 3)

2. Erasure Coding (EC)

Split object into K data chunks
Generate M parity chunks
Store K+M chunks across nodes
Can recover from M failures
Storage overhead: (K+M)/K (e.g., 1.5x for 6+3)

Example (6+3 Erasure Coding):

Object (60MB) → Split into:
  - 6 data chunks (10MB each)
  - 3 parity chunks (10MB each)
  - Store 9 chunks across 9 nodes
  - Can lose any 3 chunks and still recover
  - Storage overhead: 1.5x (vs 3x for replication)

3. Hybrid Approach

Hot data: 3x replication (fast access)
Warm data: Erasure coding (cost efficient)
Cold data: Erasure coding + compression

Replication Process

Write Path:

Client uploads object
Storage service receives object
Split into chunks (if using EC)
Write chunks to primary nodes
Trigger replication to secondary nodes
Wait for quorum (e.g., 2 of 3 replicas)
Update metadata with storage locations
Return success to client

Read Path:

Client requests object
Metadata service returns storage locations
Storage service reads from nearest node
If node unavailable, read from replica
Verify checksum
Return object to client

Failure Handling:

Detect failed nodes (health checks)
Trigger re-replication from healthy replicas
Maintain replication factor
Background repair process

7. Consistency Model

Eventual Consistency (Default)

Behavior:

Writes may take time to propagate
Reads may see stale data temporarily
Eventually all replicas converge
Best for high availability and performance

Use Cases:

Most object storage operations
Non-critical data
High-throughput scenarios

Example:

Write to Node A → Replicate to B, C
Read from Node B (may see old data)
Eventually all nodes have latest data

Strong Consistency (Optional)

Behavior:

Read-after-write consistency
All reads see latest write
Higher latency
Lower throughput

Implementation:

Read from quorum (2 of 3 replicas)
Compare versions/timestamps
Return latest version

Use Cases:

Critical data
When consistency is required
Lower throughput acceptable

Scalability Design

Horizontal Scaling

Metadata Service:

Stateless design
Load balancer distributes requests
Scale by adding instances
No shared state

Storage Nodes:

Add nodes to increase capacity
Automatic data rebalancing
Consistent hashing for object placement
No single bottleneck

Metadata Database:

Cassandra: Add nodes, automatic sharding
Partition by bucket_name
Replication across data centers

Partitioning Strategy

Object Placement:

Consistent hashing based on object key
Ensures even distribution
Minimal rebalancing on node addition/removal

Example:

Hash(object_key) % num_nodes → Storage node
Object "photos/img1.jpg" → Hash → Node 5
Object "photos/img2.jpg" → Hash → Node 2

Metadata Partitioning:

Partition by (bucket_name, object_key)
Ensures metadata locality
Efficient prefix queries

Load Balancing

Strategies:

Round Robin: Distribute evenly
Least Connections: Route to least busy
Geographic: Route to nearest data center
Consistent Hashing: Same object → same node

Multi-Level:

Global load balancer (DNS)
Regional load balancers
Service-level load balancers

Performance Optimization

Caching Strategy

1. Metadata Cache (Redis)

Cache frequently accessed metadata
TTL: 5-15 minutes
Invalidate on updates

2. CDN (Content Delivery Network)

Cache popular objects at edge
Reduce latency for global users
Cache-Control headers

3. Object Cache

Cache hot objects in memory
LRU eviction policy
Reduce disk I/O

Compression

Storage Compression:

Compress objects before storage
Gzip, Snappy, LZ4
Trade-off: CPU vs storage cost

Transfer Compression:

Compress during transfer
Reduce bandwidth costs
Client can request compression

Parallel Operations

Multi-Part Upload:

Split large objects into parts
Upload parts in parallel
Merge parts on server
Resume interrupted uploads

Parallel Reads:

Read from multiple replicas
Combine chunks in parallel
Faster retrieval

Network Optimization

Bandwidth Management:

Throttling per user/bucket
Quality of Service (QoS)
Prioritize critical operations

Connection Pooling:

Reuse connections
Reduce connection overhead
Keep-alive connections

Data Integrity

Checksums

ETag (Entity Tag):

MD5 hash of object content
Verify integrity on upload/download
Detect corruption

Process:

Upload: Client calculates MD5 → Server verifies
Download: Server sends ETag → Client verifies

Storage-Level Checksums:

Checksum per chunk
Verify on read
Background verification

Corruption Detection

Background Scans:

Periodically verify all objects
Compare checksums
Trigger repair if corruption detected

Repair Process:

Detect corrupted chunk
Recover from other replicas
Re-replicate to maintain durability

Cost Optimization

Storage Tiers

1. Hot Storage

Frequently accessed data
Low latency (SSD)
Higher cost
Use case: Active data

2. Warm Storage

Occasionally accessed data
Medium latency (HDD)
Medium cost
Use case: Archives

3. Cold Storage

Rarely accessed data
High latency (tape/glacier)
Low cost
Use case: Long-term backup

Lifecycle Policies:

Hot → Warm (after 30 days)
Warm → Cold (after 90 days)
Delete (after 1 year)

Erasure Coding

Cost Savings:

3x replication: 3x storage cost
6+3 erasure coding: 1.5x storage cost
50% cost reduction

Trade-off:

Higher CPU for encoding/decoding
Slower recovery (need to reconstruct)
Good for warm/cold data

Compression

Storage Savings:

Compress objects before storage
30-70% reduction typical
Trade-off: CPU cost

Deduplication:

Detect duplicate objects
Store once, reference multiple times
Significant savings for backups

Security

Authentication

Methods:

API Keys: Access key + secret key
IAM: Identity and Access Management
OAuth 2.0: Token-based
Federated Identity: SAML, OpenID Connect

Request Signing:

HMAC-SHA256 signature
Include timestamp (prevent replay)
Include request parameters

Authorization

Access Control Lists (ACLs):

Per-object permissions
Read, write, delete permissions
User/group-based

Bucket Policies:

JSON policy documents
Fine-grained permissions
IP-based restrictions

Signed URLs:

Temporary access URLs
Expiration time
No authentication needed
Use case: Public sharing

Encryption

Encryption at Rest:

AES-256 encryption
Per-object encryption keys
Key management service (KMS)

Encryption in Transit:

TLS 1.3 for HTTPS
End-to-end encryption option
Certificate management

Key Management:

Centralized key service
Key rotation
Audit logging

Monitoring & Observability

Key Metrics

Performance:

Request latency (p50, p95, p99)
Throughput (requests/second)
Error rates
Cache hit ratio

Storage:

Total storage used
Storage by tier
Replication status
Node capacity

Durability:

Replication factor
Failed replications
Corruption events
Repair progress

Cost:

Storage costs by tier
Bandwidth costs
Request costs
Cost per GB stored

Logging

Structured Logging:

All API requests logged
Include: user, bucket, key, timestamp, latency
Centralized logging (ELK stack)

Audit Logging:

All data access logged
Compliance requirements
Security monitoring

Alerting

Critical Alerts:

Service downtime
High error rates
Storage capacity thresholds
Replication failures
Security breaches

Disaster Recovery

Backup Strategy

Metadata Backups:

Daily snapshots
Point-in-time recovery
Cross-region backups

Object Backups:

Replication across regions
Versioning enabled
Immutable backups

Recovery Procedures

RTO (Recovery Time Objective):

Target: < 1 hour
Automated failover
Health checks

RPO (Recovery Point Objective):

Target: < 15 minutes
Continuous replication
Transaction logs

Multi-Region Deployment

Active-Active:

Multiple regions serving traffic
Data replicated across regions
Automatic failover

Active-Passive:

Primary region active
Secondary region standby
Failover on primary failure

Technology Stack

Component	Technology	Rationale
API Gateway	Envoy / NGINX	High performance, routing
Metadata DB	Cassandra / DynamoDB	High write throughput, scalability
Cache	Redis Cluster	Fast metadata caching
Storage Nodes	Custom / Ceph	Distributed storage
Load Balancer	HAProxy / AWS ELB	Request distribution
CDN	CloudFront / Cloudflare	Global content delivery
Monitoring	Prometheus + Grafana	Metrics and visualization
Logging	ELK Stack	Centralized logging

Comparison with Real Systems

Amazon S3

Similarities:

Object storage model
RESTful API
High durability (11 9’s)
Eventual consistency
Lifecycle policies

Differences:

S3 uses proprietary storage layer
More advanced features (Lambda triggers, etc.)
Global infrastructure

Azure Blob Storage

Similarities:

Blob storage model
Tiered storage
Access tiers (Hot, Cool, Archive)

Differences:

Integrated with Azure ecosystem
Different API design

Google Cloud Storage

Similarities:

Object storage
Multi-region support
Strong consistency option

Differences:

Different API design
Integrated with GCP

Future Enhancements

Advanced Features
- Object versioning
- Object locking (WORM)
- Cross-region replication
- Event notifications
Performance
- Multi-part upload optimization
- Transfer acceleration
- Intelligent tiering
Integration
- Database backups
- Data lake integration
- Analytics integration
AI/ML
- Content analysis
- Automatic tagging
- Anomaly detection

What Interviewers Look For

Storage Systems Skills

Object Storage Architecture
- Metadata vs. data separation
- Consistent hashing
- Multi-copy replication
- Red Flags: No separation, poor distribution, single copy
Durability Design
- 11 9’s durability target
- Erasure coding
- Multi-region replication
- Red Flags: No durability strategy, single region, no redundancy
Scalability Design
- Horizontal scaling
- Partitioning strategy
- Load distribution
- Red Flags: Vertical scaling, bottlenecks, poor distribution

Distributed Systems Skills

Consistency Models
- Eventual consistency (default)
- Strong consistency (optional)
- Red Flags: Wrong consistency model, no understanding
Replication Strategy
- Multi-copy for hot data
- Erasure coding for cold data
- Red Flags: Single strategy, no optimization, high costs
Metadata Management
- High write throughput
- Efficient queries
- Red Flags: Wrong database, slow queries, bottlenecks

Problem-Solving Approach

Cost Optimization
- Storage tiers
- Erasure coding
- Compression
- Red Flags: No optimization, high costs, single tier
Edge Cases
- Node failures
- Network partitions
- Data corruption
- Red Flags: Ignoring failures, no recovery, data loss
Trade-off Analysis
- Durability vs. cost
- Consistency vs. performance
- Red Flags: No trade-offs, dogmatic choices

System Design Skills

Component Design
- Metadata service
- Storage service
- API gateway
- Red Flags: Monolithic, unclear boundaries
Performance Optimization
- Multi-layer caching
- CDN integration
- Parallel operations
- Red Flags: No caching, slow operations, no optimization
Security Design
- Encryption at rest
- Encryption in transit
- Access control
- Red Flags: No encryption, insecure, no access control

Communication Skills

Architecture Explanation
- Can explain metadata/data separation
- Understands durability strategies
- Red Flags: No understanding, vague explanations
Trade-off Justification
- Explains design decisions
- Discusses alternatives
- Red Flags: No justification, no alternatives

Meta-Specific Focus

Storage Systems Expertise
- Deep understanding of object storage
- Durability and consistency
- Key: Show storage systems expertise
Scale Thinking
- Exabytes of data
- Billions of objects
- Key: Demonstrate scale expertise

Conclusion

Designing a blob storage system like S3 requires careful consideration of:

Architecture: Separate metadata and storage layers
Durability: Multi-copy replication or erasure coding
Scalability: Horizontal scaling, consistent hashing
Performance: Caching, CDN, parallel operations
Cost: Storage tiers, erasure coding, compression
Security: Encryption, authentication, authorization

Key Design Decisions:

Metadata DB: Cassandra for high write throughput
Replication: 3x replication for hot data, erasure coding for warm/cold
Consistency: Eventual consistency (default), strong consistency (optional)
Caching: Multi-layer caching (Redis, CDN)
Storage: Distributed nodes with consistent hashing

The system is designed to scale to exabytes of data while maintaining high durability, availability, and performance at reasonable cost.

Introduction

Table of Contents

Requirements

Functional Requirements

Non-Functional Requirements

Capacity Estimation

Storage Scale

Request Scale

User Scale

Core Entities

Bucket

Object

Object Metadata

Object Version

API

PUT Object (Upload)

GET Object (Download)

DELETE Object

LIST Objects

HEAD Object (Get Metadata)

Data Flow

PUT Object (Upload) Flow

GET Object (Download) Flow

LIST Objects Flow

Database Design

Schema Design

Database Sharding Strategy

High-Level Design

Core Components

Deep Dive

Component Design

1. API Gateway / Load Balancer

2. Metadata Service

3. Metadata Database

Why Cassandra? Can We Use SQL Instead?

4. Storage Service

5. Storage Nodes

6. Data Durability & Replication

Replication Strategies

Replication Process

7. Consistency Model

Eventual Consistency (Default)

Strong Consistency (Optional)

Scalability Design

Horizontal Scaling

Partitioning Strategy

Load Balancing

Performance Optimization

Caching Strategy

Compression

Parallel Operations

Network Optimization

Data Integrity

Checksums

Corruption Detection

Cost Optimization

Storage Tiers

Erasure Coding

Compression

Security

Authentication

Authorization

Encryption

Monitoring & Observability

Key Metrics

Logging

Alerting

Disaster Recovery

Backup Strategy

Recovery Procedures

Multi-Region Deployment

Technology Stack

Comparison with Real Systems

Amazon S3

Azure Blob Storage

Google Cloud Storage

Future Enhancements

What Interviewers Look For

Storage Systems Skills

Distributed Systems Skills
