Introduction

A real-time game leaderboard is a critical component of gaming systems that displays player rankings based on scores, achievements, or other metrics. Designing a leaderboard system requires handling high write throughput (score updates), low latency reads, real-time updates, and multiple leaderboard types (global, friends, weekly, etc.).

This post provides a detailed walkthrough of designing a real-time game leaderboard system, covering key architectural decisions, ranking algorithms, data structures, and scalability challenges. This is a common system design interview question that tests your understanding of distributed systems, caching, real-time processing, and efficient data structures for ranking.

Table of Contents

  1. Problem Statement
  2. Requirements
  3. Capacity Estimation
  4. Core Entities
  5. API
  6. Data Flow
  7. Database Design
  8. High-Level Design
  9. Deep Dive
  10. Summary

Problem Statement

Design a real-time game leaderboard system with the following features:

  1. Players can submit scores after completing a game
  2. System maintains multiple leaderboards:
    • Global leaderboard (all players)
    • Friends leaderboard (player’s friends only)
    • Weekly leaderboard (resets weekly)
    • Country/Region leaderboard
  3. Players can view their rank and nearby players
  4. Leaderboard updates in real-time as scores are submitted
  5. Support for multiple game modes/types
  6. Historical leaderboard data (past weeks/months)

Scale Requirements:

  • 100 million+ registered players
  • 10 million+ daily active players
  • 50 million+ score submissions per day
  • 500 million+ leaderboard views per day
  • Peak: 100,000 score submissions per second
  • Read:Write ratio: 10:1 (500M views / 50M submissions)
  • Average latency: < 50ms for reads, < 100ms for writes

Requirements

Functional Requirements

Core Features:

  1. Score Submission: Players submit scores after game completion
  2. Ranking: Calculate and maintain player ranks
  3. Multiple Leaderboards: Support different leaderboard types
  4. Real-time Updates: Leaderboard updates within seconds
  5. Rank Queries: Get player rank, top N players, players around rank
  6. Historical Data: Store and query past leaderboards

Out of Scope:

  • Game logic and gameplay mechanics
  • Player authentication (assume handled elsewhere)
  • Payment processing
  • Anti-cheat mechanisms (focus on system design)

Non-Functional Requirements

  1. Availability: 99.9% uptime
  2. Performance:
    • Score submission: < 100ms (p95)
    • Leaderboard read: < 50ms (p95)
    • Real-time update latency: < 1 second
  3. Scalability: Handle 100K+ writes/second peak
  4. Consistency: Eventually consistent is acceptable
  5. Durability: All scores must be persisted
  6. Accuracy: Rankings must be accurate (no data loss)

Capacity Estimation

Traffic Estimates

  • Daily Active Players (DAU): 10 million
  • Daily score submissions: 50 million
  • Daily leaderboard views: 500 million
  • Read:Write ratio: 10:1
  • Peak writes: 100,000 per second
  • Peak reads: 1,000,000 per second

Storage Estimates

Score Records:

  • 50M submissions/day × 200 bytes = 10GB/day
  • 1 year retention: 10GB × 365 = 3.65TB

Leaderboard Data:

  • 100M players × 100 bytes (rank metadata) = 10GB
  • Multiple leaderboards (4x): 40GB
  • With replication (3x): 120GB

Historical Data:

  • Weekly snapshots: 52 weeks × 40GB = 2TB
  • Monthly snapshots: 12 months × 40GB = 480GB
  • Total historical: ~2.5TB

Total Storage: ~6TB

Bandwidth Estimates

  • Write bandwidth: 50M submissions/day × 200 bytes = 10GB/day = 116KB/s
  • Read bandwidth: 500M views/day × 5KB avg = 2.5TB/day = 29GB/s
  • Peak bandwidth: 3x average = 87GB/s

Core Entities

Player

  • Attributes: user_id, username, country_code, created_at, updated_at
  • Relationships: Submits scores, has friends, participates in leaderboards

Score

  • Attributes: score_id, user_id, game_id, leaderboard_type, score, metadata, created_at
  • Relationships: Belongs to player and game, contributes to leaderboard ranking

Leaderboard

  • Attributes: leaderboard_type, game_id, snapshot_date (for historical)
  • Relationships: Contains scores, ranked by score value

Friend

  • Attributes: user_id, friend_id, created_at
  • Relationships: Links players for friends leaderboard

API

1. Submit Score

POST /api/v1/scores
Parameters:
  - user_id: player ID
  - game_id: game/mode ID
  - score: score value
  - leaderboard_type: "global", "weekly", "country", etc.
  - metadata: optional (level, time, etc.)
Response:
  - success: boolean
  - rank: new rank
  - previous_rank: previous rank (if applicable)

2. Get Leaderboard

GET /api/v1/leaderboard/{type}
Parameters:
  - type: "global", "friends", "weekly", "country"
  - limit: number of players to return (default: 100)
  - offset: pagination offset (optional)
Response:
  - players: array of player objects (rank, user_id, score)
  - total_players: total number of players

3. Get Player Rank

GET /api/v1/leaderboard/{type}/rank/{user_id}
Parameters:
  - type: leaderboard type
  - user_id: player ID
Response:
  - rank: player rank
  - score: player score
  - total_players: total players in leaderboard

4. Get Players Around Rank

GET /api/v1/leaderboard/{type}/around/{user_id}
Parameters:
  - type: leaderboard type
  - user_id: player ID
  - range: number of players above/below (default: 5)
Response:
  - players: array of players around the specified player
  - player_rank: rank of the specified player

5. Get Historical Leaderboard

GET /api/v1/leaderboard/{type}/historical/{date}
Parameters:
  - type: leaderboard type
  - date: date in YYYY-MM-DD format
Response:
  - players: array of players from historical leaderboard
  - date: leaderboard date

Data Flow

Score Submission Flow

  1. Player submits score → Load Balancer
  2. Load Balancer → API Gateway
  3. API Gateway → Score Service
  4. Score Service validates score
  5. Score Service → Database (store score)
  6. Score Service → Message Queue (for async ranking)
  7. Message Queue → Ranking Engine (calculate rank)
  8. Ranking Engine → Redis (update leaderboard)
  9. Ranking Engine → Cache invalidation
  10. Response returned to client (with new rank)

Leaderboard Query Flow

  1. Client requests leaderboard → Load Balancer
  2. Load Balancer → API Gateway
  3. API Gateway → Leaderboard Service
  4. Leaderboard Service checks Redis cache
  5. If cache miss:
    • Query Redis Sorted Set for leaderboard
    • If not in Redis, query Database
    • Cache result in Redis
  6. Return leaderboard to client

Rank Update Flow

  1. Score update triggers ranking recalculation
  2. Ranking Engine calculates new rank
  3. Ranking Engine updates Redis Sorted Set
  4. Ranking Engine → Message Queue (for real-time updates)
  5. Message Queue → Real-time Service
  6. Real-time Service pushes update to active clients via WebSocket

Database Design

Schema Design

Players Table:

CREATE TABLE players (
    user_id BIGINT PRIMARY KEY,
    username VARCHAR(255) NOT NULL,
    country_code VARCHAR(2),
    created_at TIMESTAMP,
    updated_at TIMESTAMP,
    INDEX idx_country (country_code)
);

Scores Table:

CREATE TABLE scores (
    score_id BIGINT PRIMARY KEY AUTO_INCREMENT,
    user_id BIGINT NOT NULL,
    game_id INT NOT NULL,
    leaderboard_type VARCHAR(50) NOT NULL,
    score INT NOT NULL,
    metadata JSON,
    created_at TIMESTAMP,
    INDEX idx_user_game (user_id, game_id),
    INDEX idx_type_score (leaderboard_type, score DESC),
    INDEX idx_created (created_at),
    FOREIGN KEY (user_id) REFERENCES players(user_id)
);

Leaderboard Snapshots Table:

CREATE TABLE leaderboard_snapshots (
    snapshot_id BIGINT PRIMARY KEY AUTO_INCREMENT,
    leaderboard_type VARCHAR(50) NOT NULL,
    snapshot_date DATE NOT NULL,
    snapshot_data JSON NOT NULL,
    created_at TIMESTAMP,
    UNIQUE KEY unique_snapshot (leaderboard_type, snapshot_date),
    INDEX idx_type_date (leaderboard_type, snapshot_date)
);

Friends Table:

CREATE TABLE friends (
    user_id BIGINT NOT NULL,
    friend_id BIGINT NOT NULL,
    created_at TIMESTAMP,
    PRIMARY KEY (user_id, friend_id),
    INDEX idx_user (user_id),
    INDEX idx_friend (friend_id),
    FOREIGN KEY (user_id) REFERENCES players(user_id),
    FOREIGN KEY (friend_id) REFERENCES players(user_id)
);

Database Sharding Strategy

Shard by User ID:

  • Player data, scores, friends on same shard
  • Enables efficient player queries

Challenges:

  • Global leaderboard requires aggregation across shards
  • Need efficient cross-shard queries

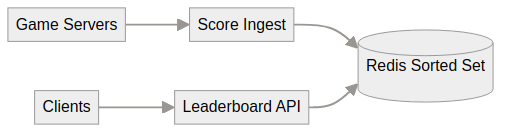

High-Level Design

┌─────────────┐
│   Client    │
│  (Game)     │
└──────┬──────┘
       │
       ▼
┌─────────────────────────────────────────┐
│         Load Balancer                   │
└──────┬──────────────────┬───────────────┘
       │                  │
       ▼                  ▼
┌──────────────┐   ┌──────────────┐
│ Score        │   │ Leaderboard │
│ Service      │   │ Service     │
└──────┬───────┘   └──────┬───────┘
       │                  │
       ├──────────────────┼──────────────────┐
       │                  │                  │
       ▼                  ▼                  ▼
┌──────────────┐  ┌──────────────┐  ┌──────────────┐
│ Ranking      │  │ Cache        │  │ Database     │
│ Engine       │  │ (Redis)       │  │ (Sharded)    │
└──────────────┘  └──────────────┘  └──────────────┘

Deep Dive

Component Design

1. Score Service

Responsibilities:

  • Receive score submissions
  • Validate scores
  • Store scores in database
  • Trigger ranking updates

Flow:

  1. Receive score submission
  2. Validate score (anti-cheat checks, etc.)
  3. Store score in database
  4. Publish to message queue for ranking
  5. Return acknowledgment

Optimizations:

  • Batch writes for high throughput
  • Async processing for ranking
  • Rate limiting per user

2. Ranking Engine

Responsibilities:

  • Calculate and maintain rankings
  • Update leaderboard caches
  • Handle tie-breaking logic

Data Structures:

Option 1: Redis Sorted Sets (Recommended)

Key: leaderboard:{type}:{game_id}
Type: Sorted Set
Score: score value
Value: user_id

Advantages:

  • O(log N) insertion and update
  • O(log N + M) range queries (top N)
  • Built-in ranking operations
  • Atomic operations

Operations:

  • ZADD: Add/update score
  • ZREVRANGE: Get top N players
  • ZREVRANK: Get player rank
  • ZREVRANGEBYSCORE: Get players around rank

Option 2: Database with Materialized View

  • Pre-computed rankings
  • Slower updates but faster reads
  • Good for less frequent updates

Ranking Algorithm:

Tie-breaking Logic:

  1. Higher score wins
  2. If scores equal, earlier submission wins (timestamp)
  3. If still equal, lower user_id wins (deterministic)

Score Calculation:

final_score = base_score + bonus_points - penalty_points

3. Leaderboard Service

Responsibilities:

  • Serve leaderboard queries
  • Handle pagination
  • Cache frequently accessed data

Query Patterns:

Get Top N Players:

ZREVRANGE leaderboard:global:1 0 99 WITHSCORES

Get Player Rank:

ZREVRANK leaderboard:global:1 {user_id}
ZSCORE leaderboard:global:1 {user_id}

Get Players Around Rank:

rank = ZREVRANK leaderboard:global:1 {user_id}
ZREVRANGE leaderboard:global:1 rank-5 rank+5 WITHSCORES

Caching Strategy:

  • Cache top 1000 players for each leaderboard
  • TTL: 1 second (very short for real-time)
  • Invalidate on score updates

4. Real-time Update Service

Requirements:

  • Push leaderboard updates to clients
  • Notify players of rank changes

Implementation:

Option 1: WebSockets

  • Maintain persistent connections
  • Push updates immediately
  • Higher server load

Option 2: Server-Sent Events (SSE)

  • One-way push from server
  • Simpler than WebSockets
  • Good for leaderboard updates

Option 3: Polling

  • Client polls every few seconds
  • Simple but less efficient

Recommended: Hybrid

  • WebSockets for active players (top 1000)
  • Polling for others
  • Use message queue (Kafka) to distribute updates

Flow:

  1. Score update triggers ranking recalculation
  2. Publish update event to Kafka
  3. Real-time service consumes and pushes to clients
  4. Clients receive updated leaderboard

5. Historical Leaderboard Service

Responsibilities:

  • Store leaderboard snapshots
  • Serve historical queries

Snapshot Strategy:

  • Daily snapshots at midnight UTC
  • Weekly snapshots for weekly leaderboards
  • Monthly snapshots for long-term storage

Storage:

  • Store top 10,000 players per snapshot
  • Compress old snapshots
  • Archive to cold storage after 1 year

Detailed Design

Data Structure: Redis Sorted Sets

Why Redis Sorted Sets?

  • Efficient ranking operations
  • O(log N) complexity for inserts/updates
  • Built-in range queries
  • Atomic operations
  • High performance

Key Operations:

Add/Update Score:

ZADD leaderboard:global:1 {score} {user_id}

Get Top N:

ZREVRANGE leaderboard:global:1 0 99 WITHSCORES

Get Rank:

ZREVRANK leaderboard:global:1 {user_id}
ZSCORE leaderboard:global:1 {user_id}

Get Range Around Rank:

ZREVRANGE leaderboard:global:1 {start} {end} WITHSCORES

Remove Player:

ZREM leaderboard:global:1 {user_id}

Leaderboard Types

1. Global Leaderboard

  • All players across all games
  • Key: leaderboard:global:{game_id}
  • Most frequently accessed

2. Friends Leaderboard

  • Filtered by player’s friends
  • Key: leaderboard:friends:{user_id}:{game_id}
  • Requires friend list lookup

3. Weekly Leaderboard

  • Resets every week
  • Key: leaderboard:weekly:{week_number}:{game_id}
  • Archive at end of week

4. Country Leaderboard

  • Filtered by country
  • Key: leaderboard:country:{country_code}:{game_id}
  • Pre-filtered by country

5. Custom Leaderboards

  • Time-based (daily, monthly)
  • Event-based (tournaments)
  • Group-based (clans, teams)

Handling High Write Throughput

Challenge: 100K writes/second

Solutions:

1. Write Batching

  • Batch score submissions
  • Process in batches of 100-1000
  • Reduce Redis operations

2. Write Buffer

  • Buffer writes in memory
  • Flush periodically
  • Handle backpressure

3. Sharding Leaderboards

  • Shard by game_id or user_id hash
  • Distribute load across Redis instances
  • Use consistent hashing

4. Async Processing

  • Accept writes immediately
  • Process ranking asynchronously
  • Eventual consistency acceptable

5. Redis Cluster

  • Horizontal scaling
  • Shard data across nodes
  • High availability

Handling Tie-breaking

Problem: Multiple players with same score

Solution:

  • Use composite score: {score}.{timestamp}.{user_id}
  • Convert to decimal: score + (1 / (timestamp + 1)) + (1 / (user_id + 1))
  • Ensures deterministic ordering

Example:

Player A: score=1000, timestamp=1234567890, user_id=123
Player B: score=1000, timestamp=1234567891, user_id=456

Composite A: 1000.0000000008103715 (earlier timestamp wins)
Composite B: 1000.0000000008103714

Caching Strategy

Multi-level Caching:

L1: Application Cache (In-memory)

  • Top 100 players per leaderboard
  • TTL: 100ms
  • Very fast access

L2: Redis Cache

  • Full leaderboard data
  • TTL: 1 second
  • Fast updates

L3: Database

  • Persistent storage
  • Historical data
  • Backup for cache

Cache Invalidation:

  • Invalidate on score updates
  • Use pub/sub for cache invalidation
  • Lazy invalidation for non-critical updates

Message Queue Architecture

Use Cases:

  1. Score Processing: Async score processing
  2. Ranking Updates: Trigger ranking recalculation
  3. Real-time Updates: Push updates to clients
  4. Historical Snapshots: Schedule snapshot creation

Technology: Apache Kafka

Topics:

  • scores.submitted: New score submissions
  • leaderboard.updated: Leaderboard update events
  • rank.changed: Player rank change events
  • snapshot.created: Historical snapshot events

Scalability Considerations

Horizontal Scaling

Stateless Services:

  • Score Service, Leaderboard Service
  • Scale based on load
  • Use load balancer

Stateful Services:

  • Redis cluster for caching
  • Database sharding
  • Message queue partitioning

Redis Scaling

Redis Cluster:

  • Shard data across nodes
  • Automatic failover
  • High availability

Redis Sentinel:

  • Master-slave replication
  • Automatic failover
  • Read scaling

Sharding Strategy:

  • Shard by leaderboard type
  • Shard by game_id
  • Use consistent hashing

Database Scaling

Sharding:

  • Shard by user_id
  • Shard by game_id
  • Cross-shard queries for global leaderboard

Read Replicas:

  • Scale reads
  • Geographic distribution
  • Eventual consistency

Handling Hot Leaderboards

Problem: Popular games have very high traffic

Solutions:

  1. Dedicated Infrastructure: Separate Redis instances
  2. Aggressive Caching: Cache top players longer
  3. Rate Limiting: Limit queries per user
  4. CDN: Cache static leaderboard pages

Security Considerations

  1. Score Validation: Prevent cheating
    • Server-side validation
    • Rate limiting
    • Anomaly detection
  2. Authentication: Verify player identity
    • JWT tokens
    • API keys
  3. Rate Limiting: Prevent abuse
    • Limit score submissions per user
    • Limit leaderboard queries
  4. Data Privacy: Protect player data
    • Encrypt sensitive data
    • GDPR compliance
  5. Anti-cheat: Detect and prevent cheating
    • Score validation
    • Pattern detection
    • Manual review

Monitoring & Observability

Key Metrics:

  • Score submission rate
  • Leaderboard query latency (p50, p95, p99)
  • Cache hit rates
  • Redis operations per second
  • Error rates
  • Rank update latency

Alerts:

  • High latency (> 100ms)
  • High error rate (> 1%)
  • Redis memory usage
  • Database connection pool exhaustion

Tools:

  • Prometheus + Grafana for metrics
  • ELK stack for logging
  • Distributed tracing (Jaeger/Zipkin)

Trade-offs and Optimizations

Trade-offs

  1. Consistency vs Availability
    • Choose eventual consistency
    • Acceptable delay for rank updates
  2. Latency vs Accuracy
    • Cache for low latency
    • Periodic recalculation for accuracy
    • Balance both
  3. Storage vs Compute
    • Pre-compute rankings (more storage)
    • Compute on-demand (less storage)
    • Hybrid approach

Optimizations

  1. Score Batching
    • Batch multiple scores
    • Reduce Redis operations
    • Improve throughput
  2. Lazy Ranking
    • Update rankings asynchronously
    • Accept slight delay
    • Better write performance
  3. Selective Updates
    • Only update affected ranks
    • Skip updates for players far from top
    • Reduce computation
  4. Compression
    • Compress historical data
    • Reduce storage costs
    • Faster retrieval

What Interviewers Look For

Data Structure Skills

  1. Sorted Set Usage
    • Redis Sorted Sets
    • O(log N) operations
    • Efficient ranking
    • Red Flags: Inefficient data structure, O(N) operations, poor performance
  2. Ranking Algorithm
    • Accurate ranking
    • Tie-breaking logic
    • Composite scores
    • Red Flags: Incorrect ranking, no tie-breaking, simple scores only
  3. Score Updates
    • Atomic updates
    • Efficient operations
    • Red Flags: Non-atomic, inefficient, race conditions

Real-Time Systems Skills

  1. Low Latency Reads
    • < 50ms query latency
    • Multi-level caching
    • Red Flags: High latency, no caching, slow queries
  2. High Write Throughput
    • 100K+ writes/second
    • Async processing
    • Red Flags: Synchronous processing, low throughput, bottlenecks
  3. Real-Time Updates
    • Updates within seconds
    • Efficient propagation
    • Red Flags: Delayed updates, no real-time, polling

Problem-Solving Approach

  1. Multiple Leaderboard Types
    • Global, friends, weekly
    • Efficient filtering
    • Red Flags: Single type, inefficient filtering, no variety
  2. Edge Cases
    • Concurrent score updates
    • Large player base
    • Tie situations
    • Red Flags: Ignoring edge cases, no handling
  3. Trade-off Analysis
    • Latency vs accuracy
    • Consistency vs performance
    • Red Flags: No trade-offs, dogmatic choices

System Design Skills

  1. Component Design
    • Ranking service
    • Query service
    • Update service
    • Red Flags: Monolithic, unclear boundaries
  2. Sharding Strategy
    • Horizontal scaling
    • Efficient distribution
    • Red Flags: No sharding, vertical scaling, bottlenecks
  3. Caching Strategy
    • Multi-level caching
    • Cache invalidation
    • Red Flags: No caching, poor strategy, stale data

Communication Skills

  1. Data Structure Explanation
    • Can explain sorted sets
    • Understands complexity
    • Red Flags: No understanding, vague
  2. Algorithm Explanation
    • Can explain ranking algorithm
    • Understands tie-breaking
    • Red Flags: No understanding, vague

Meta-Specific Focus

  1. Data Structures Expertise
    • Deep understanding of sorted sets
    • Algorithm knowledge
    • Key: Show data structures expertise
  2. Performance Optimization
    • Low latency design
    • High throughput
    • Key: Demonstrate performance focus

Summary

Designing a real-time game leaderboard system requires handling:

  1. High Write Throughput: 100K+ writes/second
  2. Low Latency Reads: < 50ms for queries
  3. Real-time Updates: Updates within seconds
  4. Multiple Leaderboard Types: Global, friends, weekly, etc.
  5. Ranking Accuracy: Accurate and consistent rankings

Key Architectural Decisions:

  • Redis Sorted Sets: Efficient ranking data structure
  • Async Processing: Handle high write throughput
  • Multi-level Caching: Low latency reads
  • Message Queue: Decouple components
  • Sharding: Scale horizontally
  • Composite Scores: Handle tie-breaking

Data Structure Choice:

  • Redis Sorted Sets: O(log N) operations, built-in ranking
  • Perfect for leaderboard use case
  • High performance and scalability

Leaderboard Types:

  • Global: All players
  • Friends: Filtered by friend list
  • Weekly: Time-based with reset
  • Country: Geographic filtering
  • Custom: Event-based, group-based

This design can handle the scale of major gaming platforms while maintaining low latency and high availability for real-time leaderboard updates.
