Design a Web Crawler System

Introduction

A web crawler is a program that automatically traverses the web by downloading web pages and following links from one page to another. It is used to index the web for search engines, collect data for research, or monitor websites for changes.

This post provides a detailed walkthrough of designing a scalable web crawler system that can efficiently crawl billions of web pages while adhering to politeness policies and handling failures gracefully. This is a common system design interview question that tests your understanding of distributed systems, queue management, rate limiting, and data storage at scale.

Problem Statement
Requirements
- Functional Requirements
- Non-Functional Requirements
Capacity Estimation
Core Entities
API
Data Flow
Database Design
- Schema Design
- Database Sharding Strategy
High-Level Design
Deep Dive
Summary

Problem Statement

Design a web crawler system that can:

Crawl the web starting from a given set of seed URLs
Extract text data from each web page and store it for later processing
Follow links to discover new pages to crawl
Handle billions of web pages efficiently
Adhere to politeness policies (robots.txt, rate limiting)
Handle failures gracefully and resume crawling without losing progress

Out of Scope:

Processing of the extracted text data (e.g., training LLMs)
Handling non-text data (images, videos, etc.)
Handling dynamic content (JavaScript-rendered pages)
Handling authentication (login-required pages)

Requirements

Functional Requirements

Core Requirements:

Crawl URLs: Start from seed URLs and crawl discovered pages
Extract Text Data: Extract text content from HTML pages
Follow Links: Discover and queue new URLs from crawled pages
Store Data: Store extracted text data for later processing
Track Progress: Track which URLs have been crawled and which are pending

Out of Scope:

Text data processing (LLM training, indexing, ranking)
Non-text content handling
Dynamic content rendering
Authentication handling

Non-Functional Requirements

Scale Assumptions:

10 billion pages on the web
Average page size: 2MB
Time constraint: Complete crawling in 5 days
Total data: ~20PB of data

Core Requirements:

Fault Tolerance: Handle failures gracefully and resume without losing progress
Politeness: Adhere to robots.txt and avoid overloading servers
Efficiency: Complete crawling within 5 days
Scalability: Handle 10 billion pages
Deduplication: Avoid crawling the same URL multiple times
Rate Limiting: Respect per-domain rate limits

Out of Scope:

Security (protecting from malicious actors)
Cost optimization
Legal compliance and privacy regulations

Capacity Estimation

Traffic Estimates

Total pages to crawl: 10 billion
Average page size: 2MB
Time constraint: 5 days
Required throughput: 10B pages / (5 days × 24 hours × 3600 seconds) = ~23,148 pages/second
Bandwidth requirement: 23,148 pages/sec × 2MB = ~46GB/s

Storage Estimates

Text Data:

10B pages × 200KB (extracted text) = 2PB
With compression (50%): 1PB

Metadata:

10B URLs × 100 bytes = 1TB
Crawl history: 10B × 50 bytes = 500GB
Total metadata: ~1.5TB

Total Storage: ~1PB

Bandwidth Estimates

Download bandwidth: 46GB/s peak
Upload bandwidth: 46GB/s (to blob storage)
Total bandwidth: ~92GB/s

Core Entities

URL

Attributes: url_id, url_string, domain, status, priority, discovered_at, crawled_at
Relationships: Links to other URLs, belongs to domain

Domain

Attributes: domain_id, domain_name, robots_txt, rate_limit, last_crawled_at
Relationships: Contains URLs, has rate limits

Crawl Job

Attributes: job_id, seed_urls, status, started_at, completed_at
Relationships: Contains URLs to crawl

API

1. Start Crawl Job

POST /api/v1/crawl/start
Parameters:
  - seed_urls: array of seed URLs
  - max_pages: maximum pages to crawl (optional)
Response:
  - job_id: unique job identifier
  - status: "started"

2. Get Crawl Status

GET /api/v1/crawl/{job_id}/status
Parameters:
  - job_id: job ID
Response:
  - status: "running", "completed", "failed"
  - pages_crawled: number of pages crawled
  - pages_remaining: number of pages remaining
  - progress: percentage complete

3. Get Crawled Data

GET /api/v1/crawl/{job_id}/data
Parameters:
  - job_id: job ID
  - limit: number of pages to return (default: 100)
  - offset: pagination offset (optional)
Response:
  - pages: array of page objects
  - total_pages: total number of pages crawled

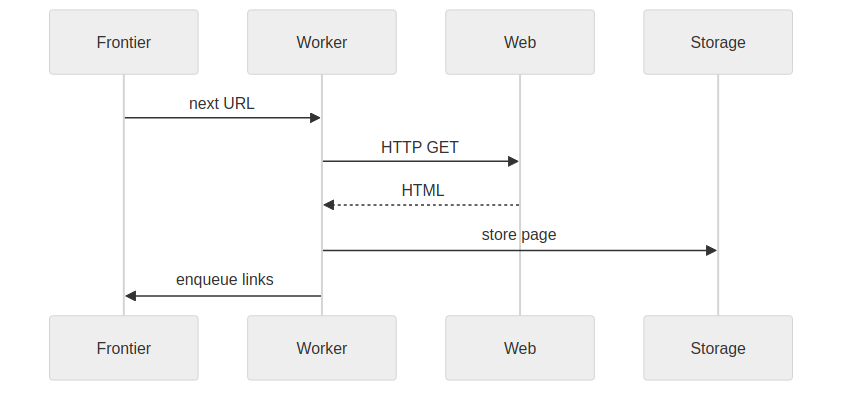

Data Flow

The high-level data flow for our web crawler:

Seed URLs → Add to frontier queue
Frontier Queue → Dequeue URL for crawling
DNS Resolution → Resolve domain name to IP address
Fetch HTML → Download HTML from web server
Parse HTML → Extract text data and links
Store Text → Save extracted text to blob storage
Extract Links → Discover new URLs and add to frontier queue
Repeat → Continue until all URLs are crawled

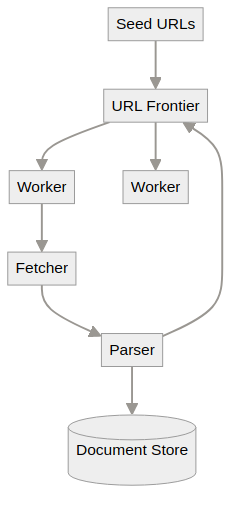

High-Level Design

┌─────────────────────────────────────────────────────────┐
│                    System Boundary                       │
│                                                           │
│  ┌──────────────┐                                         │
│  │   Frontier   │  ──── Queue of URLs to crawl            │
│  │    Queue     │                                         │
│  └──────┬───────┘                                         │
│         │                                                  │
│         ▼                                                  │
│  ┌──────────────┐                                         │
│  │   Crawler    │  ──── Fetches pages, extracts data     │
│  │   Workers    │                                         │
│  └──────┬───────┘                                         │
│         │                                                  │
│         ▼                                                  │
│  ┌──────────────┐                                         │
│  │     DNS      │  ──── Resolves domain names            │
│  └──────┬───────┘                                         │
│         │                                                  │
│         ▼                                                  │
│  ┌──────────────┐                                         │
│  │   Parser     │  ──── Extracts text and links           │
│  │   Workers    │                                         │
│  └──────┬───────┘                                         │
│         │                                                  │
│         ▼                                                  │
│  ┌──────────────┐                                         │
│  │  Blob Store  │  ──── Stores extracted text data       │
│  │     (S3)     │                                         │
│  └──────────────┘                                         │
│                                                           │
│  ┌──────────────┐                                         │
│  │  Metadata DB │  ──── Tracks crawled URLs, status      │
│  └──────────────┘                                         │
│                                                           │
└───────────────────────────────────────────────────────────┘
         │
         ▼
┌─────────────────┐
│   Web Servers   │  ──── External web pages
└─────────────────┘

Database Design

Schema Design

URLs Table:

CREATE TABLE urls (
    url_id BIGINT PRIMARY KEY AUTO_INCREMENT,
    url_string VARCHAR(2048) UNIQUE NOT NULL,
    domain VARCHAR(255) NOT NULL,
    status ENUM('pending', 'crawling', 'completed', 'failed') DEFAULT 'pending',
    priority INT DEFAULT 0,
    discovered_at TIMESTAMP,
    crawled_at TIMESTAMP,
    INDEX idx_domain_status (domain, status),
    INDEX idx_status_priority (status, priority DESC),
    INDEX idx_url_string (url_string(255))
);

Domains Table:

CREATE TABLE domains (
    domain_id BIGINT PRIMARY KEY AUTO_INCREMENT,
    domain_name VARCHAR(255) UNIQUE NOT NULL,
    robots_txt TEXT,
    rate_limit_per_second INT DEFAULT 1,
    last_crawled_at TIMESTAMP,
    INDEX idx_domain_name (domain_name)
);

Pages Table:

CREATE TABLE pages (
    page_id BIGINT PRIMARY KEY AUTO_INCREMENT,
    url_id BIGINT NOT NULL,
    content_hash VARCHAR(64) NOT NULL,
    text_data_url VARCHAR(512) NOT NULL,
    links_count INT DEFAULT 0,
    created_at TIMESTAMP,
    INDEX idx_url_id (url_id),
    INDEX idx_content_hash (content_hash),
    FOREIGN KEY (url_id) REFERENCES urls(url_id)
);

Crawl Jobs Table:

CREATE TABLE crawl_jobs (
    job_id BIGINT PRIMARY KEY AUTO_INCREMENT,
    seed_urls JSON NOT NULL,
    status ENUM('pending', 'running', 'completed', 'failed') DEFAULT 'pending',
    pages_crawled INT DEFAULT 0,
    started_at TIMESTAMP,
    completed_at TIMESTAMP,
    INDEX idx_status (status)
);

Database Sharding Strategy

Shard by Domain:

URLs and pages grouped by domain
Enables efficient domain-based rate limiting
Reduces cross-shard queries

Deep Dive

Component Design

1. Frontier Queue

The frontier queue stores URLs that need to be crawled. It should support:

High throughput: Millions of URLs per second
Deduplication: Avoid duplicate URLs
Prioritization: Crawl important URLs first
Persistence: Survive system failures

Technology Options:

Kafka:

✅ High throughput (millions of messages/second)
✅ Persistence and durability
✅ Multiple consumer groups
✅ Built-in partitioning
❌ More complex setup
❌ Overkill for simple use cases

Redis:

✅ Simple and fast
✅ Built-in data structures (sets, sorted sets)
✅ Good for deduplication
❌ Limited persistence options
❌ Memory constraints

SQS:

✅ Fully managed
✅ Simple to use
✅ Built-in retry logic
❌ Lower throughput than Kafka
❌ Less control over prioritization

Recommendation: Use Kafka for high-scale crawling (10B pages) due to its high throughput and persistence capabilities.

Queue Structure:

Partition by domain to ensure politeness (one partition per domain)
Use priority queues for important URLs
Implement deduplication using Bloom filters or hash sets

2. Crawler Workers

Crawler workers fetch HTML pages from web servers. They need to:

Respect robots.txt: Check robots.txt before crawling
Rate Limiting: Limit requests per domain
Handle Failures: Retry failed requests
Timeout Handling: Set appropriate timeouts

Architecture:

Crawler Worker Pool
├── Worker 1 → Domain A (rate limited)
├── Worker 2 → Domain B (rate limited)
├── Worker 3 → Domain C (rate limited)
└── ...

Rate Limiting Strategy:

Maintain per-domain rate limiters
Use token bucket or sliding window algorithms
Default: 1 request per second per domain
Respect robots.txt crawl-delay directives

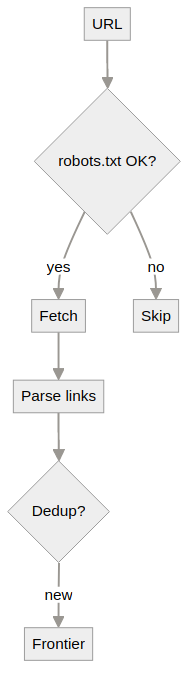

Robots.txt Handling:

Fetch and parse robots.txt for each domain
Cache robots.txt rules (TTL: 24 hours)
Check rules before crawling each URL
Respect User-Agent requirements

Failure Handling:

Retry transient failures (5xx errors) with exponential backoff
Skip permanent failures (4xx errors)
Track failure rates per domain
Blacklist domains with high failure rates

3. DNS Resolution

DNS resolution is a critical bottleneck. We need to:

Cache DNS lookups: Avoid repeated DNS queries
Handle DNS failures: Retry with backoff
Avoid overloading DNS servers: Rate limit DNS queries

DNS Caching Strategy:

Cache DNS responses (TTL from DNS record)
Use in-memory cache (Redis) for frequently accessed domains
Fallback to DNS server if cache miss
Handle DNS failures gracefully

Implementation:

Use DNS caching library (e.g., dns-cache)
Cache in Redis with TTL from DNS response
Maintain DNS resolver pool for parallel lookups

4. Parser Workers

Parser workers extract text data and links from HTML:

HTML Parsing: Parse HTML and extract text content
Link Extraction: Find all links (href attributes)
Normalization: Normalize URLs (remove fragments, resolve relative URLs)
Filtering: Filter out unwanted URLs (mailto:, javascript:, etc.)

Text Extraction:

Remove HTML tags
Extract text content
Clean and normalize text
Handle encoding (UTF-8, etc.)

Link Extraction:

Parse <a href=""> tags
Extract absolute and relative URLs
Normalize URLs (resolve relative URLs)
Filter URLs (remove duplicates, invalid URLs)

URL Normalization:

Convert to absolute URLs
Remove fragments (#)
Remove default ports (80, 443)
Convert to lowercase
Remove trailing slashes (optional)

5. Blob Storage (S3)

Store extracted text data in blob storage:

Scalability: Handle petabytes of data
Durability: 99.999999999% (11 9’s) durability
Cost: Low-cost storage for large files
Access: Easy retrieval for downstream processing

Storage Structure:

s3://crawler-data/
├── domain1.com/
│   ├── page1.html.txt
│   ├── page2.html.txt
│   └── ...
├── domain2.com/
│   └── ...

Metadata:

Store metadata in separate database (not in S3)
Include: URL, crawl timestamp, file path, size, etc.

6. Metadata Database

Track crawled URLs and their status:

URL Status: Pending, Crawling, Completed, Failed
Crawl History: Timestamp, status, error messages
Deduplication: Track seen URLs
Statistics: Crawl progress, success rates

Database Schema:

CREATE TABLE urls (
    url_hash VARCHAR(64) PRIMARY KEY,
    url TEXT NOT NULL,
    domain VARCHAR(255) NOT NULL,
    status ENUM('pending', 'crawling', 'completed', 'failed') NOT NULL,
    created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    crawled_at TIMESTAMP,
    retry_count INT DEFAULT 0,
    error_message TEXT,
    file_path VARCHAR(512),
    file_size BIGINT,
    INDEX idx_domain (domain),
    INDEX idx_status (status),
    INDEX idx_crawled_at (crawled_at)
);

CREATE TABLE crawl_history (
    id BIGINT AUTO_INCREMENT PRIMARY KEY,
    url_hash VARCHAR(64) NOT NULL,
    status ENUM('crawling', 'completed', 'failed') NOT NULL,
    timestamp TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    error_message TEXT,
    FOREIGN KEY (url_hash) REFERENCES urls(url_hash),
    INDEX idx_url_hash (url_hash),
    INDEX idx_timestamp (timestamp)
);

Technology Choice:

PostgreSQL: For structured metadata and queries
Cassandra: For high-scale write-heavy workloads
DynamoDB: For fully managed solution

Recommendation: Use PostgreSQL for structured queries and Cassandra for high-scale scenarios.

Scalability and Performance

Throughput Calculation

Target: Crawl 10 billion pages in 5 days

Calculation:

Total pages: 10B
Time: 5 days = 432,000 seconds
Required throughput: 10B / 432,000 ≈ 23,148 pages/second

With overhead and failures:

Assume 50% overhead (DNS, retries, etc.)
Target: ~35,000 pages/second

Scaling Strategy

Horizontal Scaling:

Scale crawler workers: 1,000+ workers
Scale parser workers: 500+ workers
Scale Kafka partitions: 100+ partitions
Scale database: Shard by domain or URL hash

Bottlenecks:

DNS Resolution: Cache aggressively, use DNS pools
Network Bandwidth: Distribute across regions
Database Writes: Batch writes, use write-optimized DB
Queue Throughput: Partition Kafka topics by domain

Deduplication

Bloom Filter:

Use Bloom filter for fast duplicate detection
False positives acceptable (will skip some URLs)
Memory efficient: ~10 bits per URL
For 10B URLs: ~12.5GB memory

Hash Set:

Use distributed hash set (Redis) for exact deduplication
More memory intensive but accurate
Use for critical URLs

Hybrid Approach:

Use Bloom filter for first-pass filtering
Use hash set for confirmed unique URLs
Balance between memory and accuracy

Politeness and Rate Limiting

Per-Domain Rate Limiting:

Default: 1 request per second per domain
Respect robots.txt crawl-delay
Use token bucket algorithm
Track rate limiters per domain

Robots.txt Caching:

Cache robots.txt rules (TTL: 24 hours)
Store in Redis or database
Parse and apply rules before crawling

Implementation:

class RateLimiter:
    def __init__(self, domain, requests_per_second=1):
        self.domain = domain
        self.requests_per_second = requests_per_second
        self.tokens = requests_per_second
        self.last_update = time.time()

    def acquire(self):
        now = time.time()
        elapsed = now - self.last_update
        self.tokens = min(
            self.requests_per_second,
            self.tokens + elapsed * self.requests_per_second
        )
        self.last_update = now

        if self.tokens >= 1:
            self.tokens -= 1
            return True
        return False

Fault Tolerance

Failure Scenarios

Crawler Worker Failure: Worker crashes mid-crawl
Network Failure: Connection timeout or DNS failure
Web Server Failure: 5xx errors from web servers
Database Failure: Metadata DB unavailable
Queue Failure: Kafka partition unavailable

Handling Strategies

Crawler Worker Failures:

Use idempotent operations
Track progress in database
Re-queue URLs on worker failure
Implement heartbeat mechanism

Network Failures:

Retry with exponential backoff
Skip after max retries
Track failure rates per domain
Blacklist problematic domains

Database Failures:

Use database replication
Implement retry logic
Use eventual consistency where possible
Batch writes to reduce load

Queue Failures:

Use Kafka replication (3 replicas)
Implement consumer group rebalancing
Handle partition leader changes

Idempotency

URL Processing:

Check if URL already crawled before processing
Use database transaction to mark URL as crawling
Store results atomically
Handle duplicate processing gracefully

Implementation:

def crawl_url(url):
    url_hash = hash_url(url)

    # Check if already crawled
    if is_crawled(url_hash):
        return

    # Mark as crawling (atomic operation)
    if not mark_as_crawling(url_hash):
        return  # Another worker is processing

    try:
        # Fetch and parse
        html = fetch_html(url)
        text = extract_text(html)
        links = extract_links(html)

        # Store results
        store_text(url, text)
        add_links_to_queue(links)
        mark_as_completed(url_hash)
    except Exception as e:
        mark_as_failed(url_hash, str(e))
        raise

Advanced Considerations

1. URL Prioritization

Priority Queue:

Prioritize important URLs (high PageRank, popular domains)
Use multiple priority levels
Implement priority queue in Kafka or Redis

Strategies:

PageRank: Prioritize URLs with high PageRank
Domain Popularity: Prioritize popular domains
Recency: Prioritize recently updated pages
User Signals: Prioritize based on user clicks/views

2. Crawler Traps

Detection:

Track URL depth (number of hops from seed)
Detect URL patterns (session IDs, timestamps)
Limit depth per domain
Detect cycles in URL graph

Prevention:

Set maximum depth limit (e.g., 10 hops)
Filter URLs with suspicious patterns
Use canonical URLs
Track URL patterns per domain

3. Distributed Crawling

Domain-Based Partitioning:

Partition URLs by domain
Each worker handles specific domains
Ensures politeness (one worker per domain)
Simplifies rate limiting

Geographic Distribution:

Deploy crawlers in multiple regions
Crawl from region closest to web server
Reduce latency and bandwidth costs
Handle regional restrictions

4. Monitoring and Observability

Key Metrics:

Crawl rate (pages/second)
Success rate (% of successful crawls)
Failure rate by domain
Queue depth (pending URLs)
Storage usage
Worker utilization

Alerting:

Low crawl rate
High failure rate
Queue backup
Worker failures
Storage capacity

Tools:

Prometheus for metrics
Grafana for dashboards
ELK stack for logs
PagerDuty for alerts

Technology Stack Summary

Component	Technology	Rationale
Frontier Queue	Kafka	High throughput, persistence, partitioning
Crawler Workers	Python/Go	HTTP clients, async processing
DNS Resolution	DNS Cache (Redis)	Fast lookups, caching
Parser Workers	Python (BeautifulSoup)	HTML parsing, text extraction
Blob Storage	S3	Scalable, durable, cost-effective
Metadata DB	PostgreSQL/Cassandra	Structured queries, high-scale writes
Rate Limiting	Redis	Token bucket, per-domain limits
Monitoring	Prometheus + Grafana	Metrics and dashboards

Interview Tips

For Mid-Level Engineers

Focus Areas:

High-level architecture
Basic components (queue, workers, storage)
Simple scaling strategies
Basic fault tolerance

Expected Depth:

Understand data flow
Know basic technologies (Kafka, S3, PostgreSQL)
Discuss simple rate limiting
Handle basic failures

For Senior Engineers

Focus Areas:

Detailed component design
Advanced scaling strategies
Politeness and rate limiting details
Fault tolerance and idempotency
Performance optimization

Expected Depth:

Deep dive into queue technology choices
Detailed rate limiting implementation
DNS caching strategies
Database sharding strategies
Throughput calculations

For Staff+ Engineers

Focus Areas:

System-wide optimizations
Advanced distributed systems concepts
Cost optimization
Operational excellence
Trade-off analysis

Expected Depth:

Multiple deep dives (3+ areas)
Innovative solutions
Real-world experience
Complex problem-solving
Strategic thinking

What Interviewers Look For

Distributed Systems Skills

Queue Management
- High-throughput queue design
- Kafka/message queue usage
- Priority queues
- Red Flags: Simple queue, no prioritization, bottlenecks
Deduplication Strategy
- Bloom filter usage
- Hash-based deduplication
- Efficient duplicate detection
- Red Flags: No deduplication, inefficient approach, memory issues
Politeness & Rate Limiting
- Robots.txt handling
- Domain-based rate limiting
- Respectful crawling
- Red Flags: No politeness, aggressive crawling, no rate limits

Problem-Solving Approach

Scale Thinking
- Billions of pages
- Efficient storage
- Distributed crawling
- Red Flags: Single-threaded, small-scale, no distribution
Fault Tolerance
- Handle failures gracefully
- Retry mechanisms
- Checkpointing
- Red Flags: No failure handling, no retry, data loss
Edge Cases
- Infinite loops
- Malformed URLs
- Dynamic content
- Red Flags: Ignoring edge cases, crashes

System Design Skills

Storage Design
- Efficient URL storage
- Content storage (S3)
- Metadata management
- Red Flags: Database for content, inefficient storage
Worker Design
- Distributed workers
- Load balancing
- Resource management
- Red Flags: Single worker, no distribution
DNS Optimization
- DNS caching
- Efficient resolution
- Red Flags: No caching, slow DNS

Communication Skills

Architecture Explanation
- Clear component design
- Data flow understanding
- Red Flags: Unclear design, no flow
Trade-off Analysis
- Storage vs speed
- Freshness vs efficiency
- Red Flags: No trade-offs, dogmatic choices

Meta-Specific Focus

Distributed Systems Expertise
- Queue management
- Worker coordination
- Key: Show distributed systems knowledge
Efficiency Optimization
- Deduplication strategies
- Performance optimization
- Key: Demonstrate optimization skills

Conclusion

Designing a web crawler requires careful consideration of:

Scalability: Handle billions of pages efficiently
Politeness: Respect robots.txt and rate limits
Fault Tolerance: Handle failures gracefully
Deduplication: Avoid crawling duplicates
Performance: Meet time constraints

Key design decisions:

Kafka for high-throughput queue management
Domain-based partitioning for politeness
Aggressive DNS caching for performance
Bloom filters + hash sets for deduplication
S3 for scalable blob storage
PostgreSQL/Cassandra for metadata tracking

The system should be designed to scale horizontally, handle failures gracefully, and respect web server resources while efficiently crawling the web.

Introduction

Table of Contents

Problem Statement

Requirements

Functional Requirements

Non-Functional Requirements

Capacity Estimation

Traffic Estimates

Storage Estimates

Bandwidth Estimates

Core Entities

URL

Domain

Page

Crawl Job

API

1. Start Crawl Job

2. Get Crawl Status

3. Get Crawled Data

Data Flow

High-Level Design

Database Design

Schema Design

Database Sharding Strategy

Deep Dive

Component Design

1. Frontier Queue

2. Crawler Workers

3. DNS Resolution

4. Parser Workers

5. Blob Storage (S3)

6. Metadata Database

Scalability and Performance

Throughput Calculation

Scaling Strategy

Deduplication

Politeness and Rate Limiting

Fault Tolerance

Failure Scenarios

Handling Strategies

Idempotency

Advanced Considerations

1. URL Prioritization

2. Crawler Traps

3. Distributed Crawling

4. Monitoring and Observability

Technology Stack Summary

Interview Tips

For Mid-Level Engineers

For Senior Engineers

For Staff+ Engineers

What Interviewers Look For

Distributed Systems Skills

Problem-Solving Approach

System Design Skills

Communication Skills

Meta-Specific Focus

Conclusion

References

Related Posts

Recent Posts
