Design a Connection Pool - System Design Interview

Introduction

A connection pool is a cache of connections maintained so that connections can be reused when needed, rather than creating new connections for each request. Connection pools are essential for database systems, HTTP clients, and network applications to reduce connection overhead and improve performance.

This guide covers the design of a connection pool system, including pool management, connection lifecycle, health checking, timeout handling, and resource limits.

Problem Statement
Requirements
Core Components
API Design
Detailed Design
Connection Lifecycle
Health Checking
Trade-offs
Summary

Problem Statement

Design a connection pool that:

Manages a pool of connections (database, HTTP, socket)
Reuses connections instead of creating new ones
Handles connection lifecycle (create, validate, destroy)
Monitors connection health and removes dead connections
Enforces resource limits (max connections, timeouts)
Provides thread-safe connection acquisition/release

Scale Requirements:

Support 10-1000 connections
Handle 1K-100K requests per second
Connection creation: 10-100ms
Connection acquisition: < 1ms
Low overhead: < 1% CPU

Requirements

Functional Requirements

Get Connection: Acquire connection from pool
Return Connection: Return connection to pool
Create Connection: Create new connection when needed
Validate Connection: Check if connection is valid
Close Connection: Remove connection from pool
Health Check: Monitor connection health

Non-Functional Requirements

Performance:

Fast acquisition: < 1ms
Connection reuse: > 90% reuse rate
Low overhead

Reliability:

Handle dead connections
Automatic recovery
No connection leaks

Resource Management:

Enforce max connections
Handle timeouts
Efficient memory usage

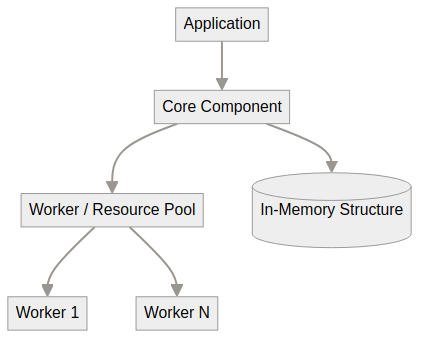

Core Components

1. Connection Pool

Manages connection collection
Enforces limits
Handles acquisition/release

2. Connection Factory

Creates new connections
Validates connections
Closes connections

3. Connection Wrapper

Wraps actual connection
Tracks state
Handles lifecycle

API Design

class ConnectionPool:
    def __init__(self,
                 factory: ConnectionFactory,
                 min_size: int = 5,
                 max_size: int = 20,
                 timeout: float = 30.0,
                 max_idle_time: float = 300.0):
        """
        Initialize connection pool.

        Args:
            factory: Factory for creating connections
            min_size: Minimum pool size
            max_size: Maximum pool size
            timeout: Connection acquisition timeout
            max_idle_time: Max idle time before closing
        """
        pass

    def get_connection(self, timeout: float = None) -> Connection:
        """Get connection from pool."""
        pass

    def return_connection(self, connection: Connection):
        """Return connection to pool."""
        pass

    def close_all(self):
        """Close all connections."""
        pass

    def get_stats(self) -> PoolStats:
        """Get pool statistics."""
        pass

Detailed Design

import threading
import queue
import time
from typing import Optional, Callable
from dataclasses import dataclass

@dataclass
class Connection:
    id: str
    connection: Any  # Actual connection object
    created_at: float
    last_used_at: float
    is_in_use: bool

class ConnectionFactory:
    def create(self) -> Any:
        """Create new connection."""
        raise NotImplementedError

    def validate(self, connection: Any) -> bool:
        """Validate connection is alive."""
        raise NotImplementedError

    def close(self, connection: Any):
        """Close connection."""
        raise NotImplementedError

class ConnectionPool:
    def __init__(self,
                 factory: ConnectionFactory,
                 min_size: int = 5,
                 max_size: int = 20,
                 timeout: float = 30.0,
                 max_idle_time: float = 300.0,
                 health_check_interval: float = 60.0):
        self.factory = factory
        self.min_size = min_size
        self.max_size = max_size
        self.timeout = timeout
        self.max_idle_time = max_idle_time
        self.health_check_interval = health_check_interval

        # Connection storage
        self.available = queue.Queue()  # Available connections
        self.in_use = {}  # connection_id -> Connection
        self.all_connections = {}  # connection_id -> Connection

        # Statistics
        self.stats = {
            'total_created': 0,
            'total_closed': 0,
            'current_size': 0,
            'in_use_count': 0,
            'available_count': 0
        }
        self.stats_lock = threading.Lock()

        # Thread safety
        self.lock = threading.Lock()

        # Background threads
        self.health_check_thread = threading.Thread(target=self._health_check_loop, daemon=True)
        self.health_check_thread.start()

        # Initialize pool
        self._initialize_pool()

    def _initialize_pool(self):
        """Initialize pool with minimum connections."""
        for _ in range(self.min_size):
            conn = self._create_connection()
            if conn:
                self.available.put(conn)

    def _create_connection(self) -> Optional[Connection]:
        """Create new connection."""
        with self.lock:
            if len(self.all_connections) >= self.max_size:
                return None

        try:
            actual_conn = self.factory.create()
            conn = Connection(
                id=f"conn_{time.time()}_{id(actual_conn)}",
                connection=actual_conn,
                created_at=time.time(),
                last_used_at=time.time(),
                is_in_use=False
            )

            with self.lock:
                self.all_connections[conn.id] = conn
                with self.stats_lock:
                    self.stats['total_created'] += 1
                    self.stats['current_size'] += 1

            return conn
        except Exception as e:
            print(f"Failed to create connection: {e}")
            return None

    def get_connection(self, timeout: float = None) -> Optional[Connection]:
        """Get connection from pool."""
        timeout = timeout or self.timeout
        deadline = time.time() + timeout

        while time.time() < deadline:
            try:
                # Try to get from available queue
                conn = self.available.get(timeout=0.1)

                # Validate connection
                if not self.factory.validate(conn.connection):
                    # Connection is dead, remove it
                    self._remove_connection(conn)
                    continue

                # Mark as in use
                with self.lock:
                    conn.is_in_use = True
                    conn.last_used_at = time.time()
                    self.in_use[conn.id] = conn
                    with self.stats_lock:
                        self.stats['in_use_count'] += 1
                        self.stats['available_count'] = max(0, self.stats['available_count'] - 1)

                return conn

            except queue.Empty:
                # No available connections, try to create new one
                with self.lock:
                    if len(self.all_connections) < self.max_size:
                        conn = self._create_connection()
                        if conn:
                            conn.is_in_use = True
                            conn.last_used_at = time.time()
                            self.in_use[conn.id] = conn
                            with self.stats_lock:
                                self.stats['in_use_count'] += 1
                            return conn

        # Timeout
        raise TimeoutError("Could not acquire connection within timeout")

    def return_connection(self, connection: Connection):
        """Return connection to pool."""
        if connection.id not in self.all_connections:
            return  # Already removed

        with self.lock:
            if connection.id in self.in_use:
                del self.in_use[connection.id]
                connection.is_in_use = False
                connection.last_used_at = time.time()

                with self.stats_lock:
                    self.stats['in_use_count'] = max(0, self.stats['in_use_count'] - 1)
                    self.stats['available_count'] += 1

                # Return to available queue
                self.available.put(connection)

    def _remove_connection(self, connection: Connection):
        """Remove connection from pool."""
        with self.lock:
            if connection.id in self.all_connections:
                del self.all_connections[connection.id]
            if connection.id in self.in_use:
                del self.in_use[connection.id]

            try:
                self.factory.close(connection.connection)
            except:
                pass

            with self.stats_lock:
                self.stats['total_closed'] += 1
                self.stats['current_size'] = max(0, self.stats['current_size'] - 1)

    def _health_check_loop(self):
        """Background thread for health checking."""
        while True:
            time.sleep(self.health_check_interval)
            self._health_check()

    def _health_check(self):
        """Check and remove dead/idle connections."""
        current_time = time.time()
        to_remove = []

        with self.lock:
            for conn_id, conn in list(self.all_connections.items()):
                if conn.is_in_use:
                    continue

                # Check if idle too long
                if current_time - conn.last_used_at > self.max_idle_time:
                    to_remove.append(conn)
                    continue

                # Validate connection
                if not self.factory.validate(conn.connection):
                    to_remove.append(conn)

        # Remove dead/idle connections
        for conn in to_remove:
            self._remove_connection(conn)

        # Ensure minimum pool size
        with self.lock:
            current_available = self.stats['available_count']
            if current_available < self.min_size:
                for _ in range(self.min_size - current_available):
                    if len(self.all_connections) < self.max_size:
                        conn = self._create_connection()
                        if conn:
                            self.available.put(conn)

    def close_all(self):
        """Close all connections."""
        with self.lock:
            for conn in list(self.all_connections.values()):
                self._remove_connection(conn)

    def get_stats(self) -> dict:
        """Get pool statistics."""
        with self.stats_lock:
            return self.stats.copy()

Connection Lifecycle

Creation: Create when pool below min_size or on demand
Validation: Check health before use
Acquisition: Get from pool, mark in-use
Usage: Use connection for operations
Return: Return to pool, mark available
Health Check: Periodic validation
Removal: Remove if dead or idle too long

Health Checking

Strategies:

On Acquisition: Validate before use
Periodic: Background thread checks
On Return: Validate when returned
Ping/Query: Send test query

Implementation:

Validate connection state
Remove dead connections
Recreate if below minimum

Trade-offs

Pool Size

Small Pool:

Less memory
May wait for connections
Lower overhead

Large Pool:

More memory
Faster acquisition
Higher overhead

Health Check Frequency

Frequent:

Detect issues faster
Higher overhead

Infrequent:

Lower overhead
May use dead connections

What Interviewers Look For

Resource Management Skills

Pool Management
- Min/max size configuration
- Connection lifecycle management
- Health checking strategies
- Red Flags: No size limits, no health checks
Connection Reuse
- Efficient connection reuse
- Overhead reduction
- Red Flags: Creating new connections each time, high overhead
Thread Safety
- Safe concurrent access
- Proper synchronization
- Red Flags: Race conditions, no synchronization

Problem-Solving Approach

Health Monitoring
- Dead connection detection
- Automatic recovery
- Idle connection cleanup
- Red Flags: No health checks, dead connections in pool
Resource Limits
- Max connection enforcement
- Timeout handling
- Red Flags: No limits, resource exhaustion
Edge Cases
- Connection failures
- Pool exhaustion
- Timeout scenarios
- Red Flags: Ignoring edge cases, no handling

Code Quality

Error Handling
- Connection failure handling
- Graceful degradation
- Red Flags: No error handling, crashes
Resource Cleanup
- Proper connection closing
- No resource leaks
- Red Flags: Connection leaks, no cleanup

Meta-Specific Focus

Resource Management
- Efficient resource utilization
- Proper lifecycle management
- Key: Show resource management skills
Concurrency Skills
- Thread-safe operations
- Proper synchronization
- Key: Demonstrate concurrency understanding

Summary

Key Takeaways

Connection Reuse: Reduce creation overhead
Pool Management: Min/max size, health checks
Thread Safety: Safe concurrent access
Resource Limits: Enforce max connections
Health Monitoring: Detect and remove dead connections

Design Principles

Efficiency: Reuse connections, fast acquisition
Reliability: Handle dead connections, automatic recovery
Resource Management: Enforce limits, prevent leaks
Simplicity: Keep design simple and maintainable

Understanding connection pool design is crucial for:

Database systems
HTTP clients
Network applications
Resource management
Performance optimization

Robina Li
