Introduction

Designing a Change Data Capture (CDC) system is a complex distributed systems problem that tests your ability to build real-time data synchronization infrastructure. CDC systems capture changes from source databases (inserts, updates, deletes) and stream them to downstream systems for replication, analytics, event-driven architectures, and real-time data pipelines.

This post provides a detailed walkthrough of designing a CDC system, covering key architectural decisions, different CDC approaches (log-based, trigger-based, polling), event streaming, data transformation, and scalability challenges. This is a common system design interview question that tests your understanding of distributed systems, database internals, event streaming, and data engineering.

Table of Contents

  1. Problem Statement
  2. Requirements
  3. Capacity Estimation
  4. Core Entities
  5. API
  6. Data Flow
  7. High-Level Design
  8. Deep Dive
  9. What Interviewers Look For
  10. Summary

Problem Statement

Design a Change Data Capture (CDC) system that:

  1. Captures database changes (INSERT, UPDATE, DELETE) in real-time
  2. Streams changes to downstream systems (databases, data warehouses, event streams)
  3. Supports multiple source databases (MySQL, PostgreSQL, MongoDB)
  4. Handles schema changes and data transformations
  5. Ensures exactly-once or at-least-once delivery semantics
  6. Scales to handle millions of changes per second
  7. Provides low-latency change propagation (< 1 second)

Scale Requirements:

  • 10M+ database changes per day
  • 100K+ changes per second (peak)
  • Support 100+ source databases
  • Support 1000+ downstream consumers
  • < 1 second change propagation latency (P95)
  • 99.9% availability

Key Challenges:

  • Capturing changes without impacting source database performance
  • Handling schema changes and migrations
  • Ensuring data consistency across systems
  • Managing backpressure and failure recovery
  • Supporting multiple database types
  • Low-latency change propagation

Requirements

Functional Requirements

Core Features:

  1. Change Capture: Capture INSERT, UPDATE, DELETE operations from source databases
  2. Change Streaming: Stream changes to downstream systems in real-time
  3. Multi-Database Support: Support MySQL, PostgreSQL, MongoDB, and other databases
  4. Schema Tracking: Track and propagate schema changes
  5. Data Transformation: Transform data formats and structures
  6. Filtering: Filter changes by table, column, or condition
  7. Replay: Replay changes from a specific point in time
  8. Monitoring: Monitor capture lag, throughput, and errors

Change Types:

  • INSERT: New row added
  • UPDATE: Row modified
  • DELETE: Row removed
  • Schema Changes: Table/column changes

Out of Scope:

  • DDL changes (CREATE TABLE, ALTER TABLE) - focus on DML
  • Cross-database transactions
  • Conflict resolution (handled by downstream)
  • Data validation (assume source data is valid)

Non-Functional Requirements

  1. Availability: 99.9% uptime
  2. Performance:
    • Change capture latency: < 100ms (P95)
    • Change propagation latency: < 1 second (P95)
    • Throughput: 100K+ changes/second
  3. Scalability: Handle 10M+ changes/day, 100+ source databases
  4. Consistency:
    • Exactly-once delivery (preferred)
    • At-least-once delivery (acceptable with idempotency)
  5. Reliability: No data loss, handle failures gracefully
  6. Low Impact: Minimal impact on source database performance (< 5% overhead)

Capacity Estimation

Traffic Estimates

  • Daily Changes: 10M+ changes per day
  • Peak Changes: 100K changes per second
  • Average Change Size: 1KB (row data + metadata)
  • Peak Bandwidth: 100K × 1KB = 100MB/s = 800Mbps
  • Source Databases: 100+
  • Downstream Consumers: 1000+

Storage Estimates

Change Log Storage:

  • 10M changes/day × 1KB = 10GB/day
  • 30-day retention: 10GB × 30 = 300GB
  • 1-year archive: 10GB × 365 = 3.65TB

Metadata Storage:

  • Schema versions: 100 tables × 10 versions × 10KB = 10MB
  • Checkpoint data: 100 databases × 1KB = 100KB
  • Total metadata: ~10MB

Total Storage: ~3.65TB per year (mostly change logs)

Core Entities

ChangeEvent

  • Attributes: event_id, source_db, table_name, operation (INSERT/UPDATE/DELETE), before_data, after_data, timestamp, transaction_id, sequence_number
  • Relationships: Belongs to source database and table
  • Purpose: Represents a single database change

SourceDatabase

  • Attributes: db_id, db_type (MySQL/PostgreSQL/MongoDB), connection_string, status, last_captured_timestamp
  • Relationships: Has many tables, generates many change events
  • Purpose: Represents a source database being monitored

TableSchema

  • Attributes: schema_id, db_id, table_name, columns, version, updated_at
  • Relationships: Belongs to source database
  • Purpose: Tracks table schema for change interpretation

Consumer

  • Attributes: consumer_id, name, subscription_type, filters, status
  • Relationships: Consumes change events
  • Purpose: Represents a downstream system consuming changes

Checkpoint

  • Attributes: checkpoint_id, source_db, table_name, last_processed_sequence, timestamp
  • Relationships: Tracks progress for source database
  • Purpose: Enables resumption after failures

API

1. Register Source Database

POST /api/v1/sources
Headers:
  - Authorization: Bearer <token>
Body:
  - db_type: string (mysql, postgresql, mongodb)
  - connection_string: string
  - tables: array<string> (optional, all tables if empty)
Response:
  - source_id: string
  - status: string (ACTIVE, INACTIVE)

2. Start Capture

POST /api/v1/sources/{source_id}/start
Headers:
  - Authorization: Bearer <token>
Response:
  - status: string (STARTED)
  - checkpoint: object

3. Stop Capture

POST /api/v1/sources/{source_id}/stop
Headers:
  - Authorization: Bearer <token>
Response:
  - status: string (STOPPED)

4. Subscribe to Changes

POST /api/v1/consumers
Headers:
  - Authorization: Bearer <token>
Body:
  - source_id: string
  - table_filter: array<string> (optional)
  - column_filter: array<string> (optional)
  - operation_filter: array<string> (optional, INSERT/UPDATE/DELETE)
Response:
  - consumer_id: string
  - kafka_topic: string (or other streaming endpoint)

5. Get Capture Status

GET /api/v1/sources/{source_id}/status
Headers:
  - Authorization: Bearer <token>
Response:
  - status: string
  - lag_seconds: integer
  - changes_per_second: integer
  - last_captured_timestamp: timestamp

6. Replay Changes

POST /api/v1/sources/{source_id}/replay
Headers:
  - Authorization: Bearer <token>
Body:
  - start_timestamp: timestamp
  - end_timestamp: timestamp (optional)
  - table_filter: array<string> (optional)
Response:
  - replay_id: string
  - kafka_topic: string

Data Flow

Change Capture Flow

1. Source Database:
   a. Transaction commits
   b. Change written to transaction log (binlog, WAL, oplog)

2. CDC Connector:
   a. Reads from transaction log
   b. Parses change events
   c. Extracts before/after data
   d. Creates ChangeEvent objects
   e. Publishes to message queue (Kafka)

3. Message Queue (Kafka):
   a. Stores change events
   b. Partitions by source_db + table_name
   c. Replicates for durability

4. Downstream Consumers:
   a. Subscribe to Kafka topics
   b. Process change events
   c. Apply to target systems
   d. Update checkpoints

Change Processing Flow

1. Change Event Arrives:
   a. Parse change event
   b. Validate schema
   c. Apply filters (if any)

2. Transformation (Optional):
   a. Transform data format
   b. Apply business logic
   c. Enrich with additional data

3. Routing:
   a. Determine target consumers
   b. Route to appropriate topics/endpoints

4. Delivery:
   a. Send to downstream systems
   b. Wait for acknowledgment
   c. Update checkpoint on success

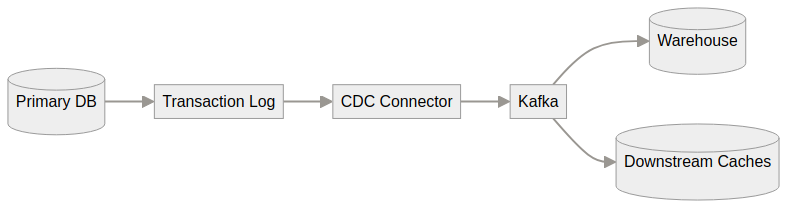

High-Level Design

┌─────────────────────────────────────────────────────────┐
│              Source Databases                           │
│  (MySQL, PostgreSQL, MongoDB, etc.)                     │
└────────────────────┬────────────────────────────────────┘
                     │
                     │ Transaction Logs
                     │ (Binlog, WAL, Oplog)
                     │
┌────────────────────▼────────────────────────────────────┐
│            CDC Connectors                               │
│  (Read Logs, Parse Changes, Create Events)              │
└──────┬───────────────────────────────────┬──────────────┘
       │                                   │
       │                                   │
┌──────▼──────────┐              ┌─────────▼───────────┐
│  Schema Registry│              │  Change Parser      │
│  (Track Schemas)│              │  (Parse Logs)       │
└─────────────────┘              └─────────────────────┘
       │                                   │
       │                                   │
┌──────▼───────────────────────────────────▼───────────┐
│         Message Queue (Kafka)                        │
│  (Store Change Events, Enable Replay)                │
└──────┬───────────────────────────────────────────────┘
       │
       │
┌──────▼───────────────────────────────────────────────┐
│         Change Processors                            │
│  (Transform, Filter, Route Changes)                   │
└──────┬───────────────────────────────────────────────┘
       │
       │
┌──────▼───────────────────────────────────────────────┐
│         Downstream Consumers                         │
│  (Databases, Data Warehouses, Event Streams)         │
└─────────────────────────────────────────────────────┘

┌───────────────────────────────────────────────────────┐
│         Checkpoint Service                           │
│  (Track Progress, Enable Recovery)                   │
└───────────────────────────────────────────────────────┘

Deep Dive

Component Design

1. CDC Connector

  • Responsibilities: Read transaction logs, parse changes, create events
  • Database-Specific: Different connectors for MySQL, PostgreSQL, MongoDB
  • Optimization:
    • Efficient log reading
    • Minimal database impact
    • Low-latency parsing

2. Schema Registry

  • Responsibilities: Track table schemas, handle schema changes
  • Optimization:
    • Schema versioning
    • Fast schema lookups
    • Schema evolution support

3. Change Parser

  • Responsibilities: Parse transaction log entries into change events
  • Optimization:
    • Efficient parsing
    • Handle different log formats
    • Extract before/after data

4. Message Queue (Kafka)

  • Responsibilities: Store change events, enable replay
  • Optimization:
    • Partitioning by source + table
    • Replication for durability
    • Retention policies

5. Change Processor

  • Responsibilities: Transform, filter, route changes
  • Optimization:
    • Efficient filtering
    • Parallel processing
    • Low-latency routing

CDC Approaches

Approach Comparison

1. Log-Based CDC (Recommended)

  • How: Read database transaction logs (binlog, WAL, oplog)
  • Pros: Low impact, real-time, captures all changes
  • Cons: Database-specific, complex parsing
  • Use Case: Production systems, high throughput

2. Trigger-Based CDC

  • How: Database triggers write changes to change table
  • Pros: Simple, database-agnostic
  • Cons: Higher database impact, potential performance issues
  • Use Case: Low-volume systems, simple requirements

3. Polling-Based CDC

  • How: Periodically query database for changes (timestamp/version columns)
  • Pros: Simple, no database modifications
  • Cons: Higher latency, misses deletes, polling overhead
  • Use Case: Legacy systems, low-latency not critical

Log-Based CDC

MySQL Binlog CDC

How It Works:

  1. Enable binlog on MySQL
  2. Connect as replication client
  3. Read binlog events
  4. Parse INSERT/UPDATE/DELETE events
  5. Extract row data

Implementation:

import mysql.connector
from mysql.connector import replication

class MySQLBinlogConnector:
    def __init__(self, connection_config):
        self.config = connection_config
        self.stream = None

    def connect(self):
        """Connect to MySQL as replication client"""
        self.stream = replication.BinLogStreamReader(
            connection_settings=self.config,
            server_id=1,
            only_events=[
                replication.DeleteRowsEvent,
                replication.WriteRowsEvent,
                replication.UpdateRowsEvent
            ]
        )

    def read_changes(self):
        """Read and parse binlog events"""
        for binlog_event in self.stream:
            if isinstance(binlog_event, replication.WriteRowsEvent):
                # INSERT operation
                for row in binlog_event.rows:
                    change_event = ChangeEvent(
                        operation='INSERT',
                        table=binlog_event.table,
                        after_data=row['values'],
                        timestamp=binlog_event.timestamp
                    )
                    yield change_event

            elif isinstance(binlog_event, replication.UpdateRowsEvent):
                # UPDATE operation
                for row in binlog_event.rows:
                    change_event = ChangeEvent(
                        operation='UPDATE',
                        table=binlog_event.table,
                        before_data=row['before_values'],
                        after_data=row['after_values'],
                        timestamp=binlog_event.timestamp
                    )
                    yield change_event

            elif isinstance(binlog_event, replication.DeleteRowsEvent):
                # DELETE operation
                for row in binlog_event.rows:
                    change_event = ChangeEvent(
                        operation='DELETE',
                        table=binlog_event.table,
                        before_data=row['values'],
                        timestamp=binlog_event.timestamp
                    )
                    yield change_event

PostgreSQL WAL CDC

How It Works:

  1. Enable logical replication on PostgreSQL
  2. Create replication slot
  3. Read WAL (Write-Ahead Log) changes
  4. Parse logical replication messages
  5. Extract row data

Implementation:

import psycopg2
from psycopg2.extras import LogicalReplicationConnection

class PostgreSQLWALConnector:
    def __init__(self, connection_string):
        self.conn_string = connection_string
        self.slot_name = "cdc_slot"

    def create_replication_slot(self):
        """Create logical replication slot"""
        conn = psycopg2.connect(self.conn_string)
        cur = conn.cursor()
        cur.execute(
            "SELECT * FROM pg_create_logical_replication_slot(%s, 'pgoutput')",
            (self.slot_name,)
        )
        slot_name, lsn = cur.fetchone()
        conn.close()
        return slot_name, lsn

    def read_changes(self, start_lsn):
        """Read WAL changes"""
        conn = psycopg2.connect(
            self.conn_string,
            connection_factory=LogicalReplicationConnection
        )

        replication_conn = conn.replication_slot(self.slot_name, start_lsn)

        for message in replication_conn:
            if message.data_message:
                # Parse logical replication message
                change_event = self.parse_wal_message(message)
                yield change_event

MongoDB Oplog CDC

How It Works:

  1. Connect to MongoDB replica set
  2. Read from oplog (operations log)
  3. Parse insert/update/delete operations
  4. Extract document data

Implementation:

from pymongo import MongoClient
from bson import Timestamp

class MongoDBOplogConnector:
    def __init__(self, connection_string):
        self.client = MongoClient(connection_string)
        self.oplog = self.client.local.oplog.rs

    def read_changes(self, last_timestamp=None):
        """Read oplog changes"""
        query = {}
        if last_timestamp:
            query['ts'] = {'$gt': last_timestamp}

        cursor = self.oplog.find(query).tailable()

        for oplog_entry in cursor:
            operation = oplog_entry['op']  # 'i', 'u', 'd'
            namespace = oplog_entry['ns']

            if operation == 'i':  # Insert
                change_event = ChangeEvent(
                    operation='INSERT',
                    table=namespace,
                    after_data=oplog_entry['o'],
                    timestamp=oplog_entry['ts']
                )
                yield change_event

            elif operation == 'u':  # Update
                change_event = ChangeEvent(
                    operation='UPDATE',
                    table=namespace,
                    before_data=oplog_entry.get('o2', {}),
                    after_data=oplog_entry['o'],
                    timestamp=oplog_entry['ts']
                )
                yield change_event

            elif operation == 'd':  # Delete
                change_event = ChangeEvent(
                    operation='DELETE',
                    table=namespace,
                    before_data=oplog_entry['o'],
                    timestamp=oplog_entry['ts']
                )
                yield change_event

Trigger-Based CDC

Implementation

Database Trigger:

-- Create change log table
CREATE TABLE change_log (
    id BIGSERIAL PRIMARY KEY,
    table_name VARCHAR(255) NOT NULL,
    operation VARCHAR(10) NOT NULL,  -- INSERT, UPDATE, DELETE
    row_id BIGINT NOT NULL,
    before_data JSONB,
    after_data JSONB,
    timestamp TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

-- Create trigger function
CREATE OR REPLACE FUNCTION log_change()
RETURNS TRIGGER AS $$
BEGIN
    IF TG_OP = 'INSERT' THEN
        INSERT INTO change_log (table_name, operation, row_id, after_data)
        VALUES (TG_TABLE_NAME, 'INSERT', NEW.id, row_to_json(NEW));
        RETURN NEW;
    ELSIF TG_OP = 'UPDATE' THEN
        INSERT INTO change_log (table_name, operation, row_id, before_data, after_data)
        VALUES (TG_TABLE_NAME, 'UPDATE', NEW.id, row_to_json(OLD), row_to_json(NEW));
        RETURN NEW;
    ELSIF TG_OP = 'DELETE' THEN
        INSERT INTO change_log (table_name, operation, row_id, before_data)
        VALUES (TG_TABLE_NAME, 'DELETE', OLD.id, row_to_json(OLD));
        RETURN OLD;
    END IF;
END;
$$ LANGUAGE plpgsql;

-- Create trigger on table
CREATE TRIGGER users_change_trigger
AFTER INSERT OR UPDATE OR DELETE ON users
FOR EACH ROW EXECUTE FUNCTION log_change();

CDC Connector:

class TriggerBasedConnector:
    def read_changes(self, last_id=0):
        """Poll change_log table"""
        query = """
            SELECT * FROM change_log
            WHERE id > %s
            ORDER BY id ASC
            LIMIT 1000
        """

        while True:
            changes = db.execute(query, (last_id,))

            if not changes:
                time.sleep(1)  # Poll every second
                continue

            for change in changes:
                change_event = ChangeEvent(
                    operation=change.operation,
                    table=change.table_name,
                    before_data=change.before_data,
                    after_data=change.after_data,
                    timestamp=change.timestamp
                )
                yield change_event
                last_id = change.id

Polling-Based CDC

Implementation

Requires Timestamp/Version Column:

-- Add updated_at column
ALTER TABLE users ADD COLUMN updated_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP;

-- Create index
CREATE INDEX idx_users_updated_at ON users(updated_at);

CDC Connector:

class PollingBasedConnector:
    def read_changes(self, last_timestamp=None):
        """Poll for changes using timestamp"""
        if not last_timestamp:
            last_timestamp = datetime.now() - timedelta(days=1)

        while True:
            query = """
                SELECT * FROM users
                WHERE updated_at > %s
                ORDER BY updated_at ASC
                LIMIT 1000
            """

            rows = db.execute(query, (last_timestamp,))

            for row in rows:
                change_event = ChangeEvent(
                    operation='UPDATE',  # Assume update (can't detect inserts/deletes)
                    table='users',
                    after_data=row,
                    timestamp=row.updated_at
                )
                yield change_event
                last_timestamp = row.updated_at

            time.sleep(1)  # Poll every second

Event Streaming

Kafka Integration

Topic Design:

  • Topic per source database: cdc-{source_db_id}
  • Partitioning: By table_name (or table_name + partition_key)
  • Replication: 3 replicas for durability

Change Event Format:

{
  "event_id": "evt_123",
  "source_db": "db_456",
  "table_name": "users",
  "operation": "UPDATE",
  "before_data": {
    "id": 1,
    "name": "John",
    "email": "john@example.com"
  },
  "after_data": {
    "id": 1,
    "name": "John Doe",
    "email": "john@example.com"
  },
  "timestamp": "2025-12-29T10:00:00Z",
  "transaction_id": "txn_789",
  "sequence_number": 12345
}

Producer:

from kafka import KafkaProducer
import json

class ChangeEventProducer:
    def __init__(self, kafka_brokers):
        self.producer = KafkaProducer(
            bootstrap_servers=kafka_brokers,
            value_serializer=lambda v: json.dumps(v).encode('utf-8'),
            acks='all',  # Wait for all replicas
            retries=3
        )

    def publish(self, change_event, source_db_id):
        """Publish change event to Kafka"""
        topic = f"cdc-{source_db_id}"
        partition_key = f"{change_event.table_name}"

        self.producer.send(
            topic,
            key=partition_key.encode('utf-8'),
            value=change_event.to_dict()
        )

Data Transformation

Schema Mapping

Transform between schemas:

class SchemaTransformer:
    def __init__(self, source_schema, target_schema):
        self.source_schema = source_schema
        self.target_schema = target_schema
        self.mapping = self.build_mapping()

    def build_mapping(self):
        """Build column mapping between schemas"""
        mapping = {}
        for source_col, target_col in zip(
            self.source_schema.columns,
            self.target_schema.columns
        ):
            mapping[source_col.name] = target_col.name
        return mapping

    def transform(self, change_event):
        """Transform change event to target schema"""
        transformed_before = None
        transformed_after = None

        if change_event.before_data:
            transformed_before = self.transform_row(
                change_event.before_data,
                self.mapping
            )

        if change_event.after_data:
            transformed_after = self.transform_row(
                change_event.after_data,
                self.mapping
            )

        return ChangeEvent(
            operation=change_event.operation,
            table=self.target_schema.table_name,
            before_data=transformed_before,
            after_data=transformed_after,
            timestamp=change_event.timestamp
        )

Schema Evolution

Handling Schema Changes

Challenge: Source schema changes (add/remove columns).

Solution: Schema versioning + transformation

Schema Registry:

class SchemaRegistry:
    def __init__(self):
        self.schemas = {}  # table_name -> [SchemaVersion]

    def register_schema(self, table_name, schema, version):
        """Register new schema version"""
        if table_name not in self.schemas:
            self.schemas[table_name] = []

        self.schemas[table_name].append({
            'version': version,
            'schema': schema,
            'created_at': datetime.now()
        })

    def get_schema(self, table_name, version=None):
        """Get schema for table"""
        if table_name not in self.schemas:
            return None

        if version:
            # Get specific version
            for schema_version in self.schemas[table_name]:
                if schema_version['version'] == version:
                    return schema_version['schema']
        else:
            # Get latest version
            return self.schemas[table_name][-1]['schema']

Schema Migration:

class SchemaMigrator:
    def migrate(self, change_event, source_version, target_version):
        """Migrate change event between schema versions"""
        source_schema = schema_registry.get_schema(
            change_event.table_name,
            source_version
        )
        target_schema = schema_registry.get_schema(
            change_event.table_name,
            target_version
        )

        # Transform data
        transformer = SchemaTransformer(source_schema, target_schema)
        return transformer.transform(change_event)

Failure Handling

Checkpoint Management

Store Progress:

class CheckpointManager:
    def __init__(self, storage):
        self.storage = storage  # Redis or database

    def save_checkpoint(self, source_db_id, table_name, sequence_number, timestamp):
        """Save checkpoint"""
        key = f"checkpoint:{source_db_id}:{table_name}"
        checkpoint = {
            'sequence_number': sequence_number,
            'timestamp': timestamp.isoformat()
        }
        self.storage.set(key, json.dumps(checkpoint))

    def get_checkpoint(self, source_db_id, table_name):
        """Get last checkpoint"""
        key = f"checkpoint:{source_db_id}:{table_name}"
        data = self.storage.get(key)
        if data:
            return json.loads(data)
        return None

    def resume_from_checkpoint(self, source_db_id, table_name):
        """Resume from last checkpoint"""
        checkpoint = self.get_checkpoint(source_db_id, table_name)
        if checkpoint:
            return checkpoint['sequence_number'], checkpoint['timestamp']
        return None, None

Error Handling

Retry Logic:

class ChangeProcessor:
    def process_change(self, change_event, retry_count=0):
        """Process change event with retry"""
        try:
            # Publish to Kafka
            producer.publish(change_event)

            # Update checkpoint
            checkpoint_manager.save_checkpoint(
                change_event.source_db,
                change_event.table_name,
                change_event.sequence_number,
                change_event.timestamp
            )

        except Exception as e:
            if retry_count < 3:
                # Retry with exponential backoff
                delay = 2 ** retry_count
                time.sleep(delay)
                return self.process_change(change_event, retry_count + 1)
            else:
                # Max retries, send to dead letter queue
                dead_letter_queue.send(change_event)
                raise

Scalability Considerations

Horizontal Scaling

CDC Connectors:

  • One connector per source database
  • Independent scaling
  • No shared state

Change Processors:

  • Multiple processors consuming from Kafka
  • Partition-based parallelism
  • Stateless processing

Kafka Partitioning:

  • Partition by source_db + table_name
  • Even distribution
  • Parallel consumption

Performance Optimization

Batch Processing:

class BatchProcessor:
    def __init__(self, batch_size=1000):
        self.batch_size = batch_size
        self.batch = []

    def add_change(self, change_event):
        """Add change to batch"""
        self.batch.append(change_event)

        if len(self.batch) >= self.batch_size:
            self.flush()

    def flush(self):
        """Flush batch to Kafka"""
        if self.batch:
            producer.send_batch(self.batch)
            self.batch = []

Connection Pooling:

  • Pool database connections
  • Reuse connections
  • Reduce overhead

Trade-offs and Optimizations

Trade-offs

  1. Latency vs Throughput
    • Choice: Batch processing for throughput
    • Reason: Balance latency and efficiency
    • Benefit: Higher throughput, acceptable latency
  2. Exactly-Once vs At-Least-Once
    • Choice: At-least-once with idempotency
    • Reason: Simpler, acceptable for most use cases
    • Benefit: Lower complexity, good enough guarantees
  3. Log-Based vs Trigger-Based
    • Choice: Log-based for production
    • Reason: Lower database impact
    • Benefit: Better performance, real-time

Optimizations

  1. Filtering
    • Filter at source (table/column level)
    • Reduce downstream processing
    • Lower bandwidth
  2. Compression
    • Compress change events
    • Reduce storage and bandwidth
    • Better performance
  3. Deduplication
    • Idempotent processing
    • Handle duplicate events
    • Ensure correctness

What Interviewers Look For

Distributed Systems Skills

  1. Change Capture
    • Understanding of database internals
    • Log-based vs trigger-based approaches
    • Low-impact capture strategies
    • Red Flags: High database impact, polling only, no log-based
  2. Event Streaming
    • Kafka integration
    • Partitioning strategies
    • Exactly-once semantics
    • Red Flags: No streaming, poor partitioning, no guarantees
  3. Schema Evolution
    • Handling schema changes
    • Version management
    • Backward compatibility
    • Red Flags: No schema handling, breaks on changes, no versioning

Problem-Solving Approach

  1. CDC Approach Selection
    • Log-based for production
    • Trigger-based for simplicity
    • Polling for legacy systems
    • Red Flags: Wrong approach, no trade-offs, one-size-fits-all
  2. Failure Handling
    • Checkpoint management
    • Retry logic
    • Dead letter queues
    • Red Flags: No checkpoints, no retries, data loss
  3. Scalability
    • Horizontal scaling
    • Partitioning strategies
    • Performance optimization
    • Red Flags: Vertical scaling only, no partitioning, bottlenecks

System Design Skills

  1. Component Design
    • Clear service boundaries
    • Proper abstractions
    • Efficient interfaces
    • Red Flags: Monolithic design, poor abstractions, inefficient APIs
  2. Data Flow
    • End-to-end flow understanding
    • Change propagation
    • Consumer management
    • Red Flags: Unclear flow, missing steps, poor routing
  3. Multi-Database Support
    • Database-specific connectors
    • Unified interface
    • Consistent behavior
    • Red Flags: Single database, no abstraction, inconsistent

Communication Skills

  1. Clear Explanation
    • Explains CDC approaches
    • Discusses trade-offs
    • Justifies design decisions
    • Red Flags: Unclear explanations, no justification, confusing
  2. Architecture Diagrams
    • Clear component diagram
    • Shows data flow
    • CDC pipeline visualization
    • Red Flags: No diagrams, unclear diagrams, missing components

Meta-Specific Focus

  1. Data Engineering
    • Understanding of ETL/ELT
    • Real-time data pipelines
    • Change propagation
    • Key: Demonstrate data engineering expertise
  2. Database Internals
    • Transaction logs
    • Replication mechanisms
    • Low-impact capture
    • Key: Show database internals knowledge
  3. Event-Driven Architecture
    • Event streaming
    • Change events
    • Downstream processing
    • Key: Demonstrate event-driven thinking

Summary

Designing a Change Data Capture (CDC) system requires careful consideration of database internals, event streaming, schema evolution, and scalability. Key design decisions include:

Architecture Highlights:

  • Log-based CDC for low database impact and real-time capture
  • Kafka for event streaming and replay capability
  • Schema registry for handling schema changes
  • Checkpoint management for failure recovery
  • Multi-database support with database-specific connectors

Key Patterns:

  • Log-Based CDC: Read transaction logs (binlog, WAL, oplog)
  • Event Streaming: Kafka for change event distribution
  • Schema Evolution: Version management and transformation
  • Checkpoint Management: Track progress for recovery
  • Exactly-Once/At-Least-Once: Delivery semantics with idempotency

Scalability Solutions:

  • Horizontal scaling (multiple connectors and processors)
  • Kafka partitioning (by source + table)
  • Batch processing (improve throughput)
  • Connection pooling (reduce overhead)

Trade-offs:

  • Log-based vs trigger-based (log-based for production)
  • Exactly-once vs at-least-once (at-least-once with idempotency)
  • Latency vs throughput (batch processing)

This design handles 10M+ changes per day, 100K+ changes per second, and maintains < 1 second change propagation latency while ensuring minimal impact on source databases and reliable change delivery. The system is scalable, fault-tolerant, and optimized for real-time data synchronization.
