Introduction

Hardware design for testing spans two complementary worlds:

  1. ATE / DUT system design — building the rack, fixture, and sequencer that tests boards and devices in the lab or on the production line.
  2. Design-for-Testability (DFT) — architectural and structural practices in silicon, IP, board, and system that make chips easier to test, debug, validate, and manufacture at scale.

This post covers both: the instrument stack from test controller to loadboard, then industry-standard DFT techniques (scan, BIST, JTAG, compression, at-speed test) and deep dives for interviews and advanced SoC programs.

Table of Contents

Part A — ATE / DUT system design

  1. Problem Statement
  2. Architecture Overview
  3. System Layers
  4. Three Design Problems That Dominate Real Projects

Part B — Design-for-Testability (DFT)

  1. DFT Overview
  2. Common DFT Techniques (Industry Categories)
  3. Modern SoC DFT Architecture
  4. DFT Tradeoffs, Tools, and Flow

Part C — Deep dives

  1. ASIC vs FPGA DFT Differences
  2. Scan Chain Architecture in Detail
  3. MBIST Algorithms
  4. IJTAG Architecture (IEEE 1687)
  5. ATPG Algorithms and Fault Coverage Math
  6. Physical-Design Impacts of DFT
  7. DFT for AI Accelerators
  8. Automotive DFT and ISO 26262

  9. DFT Interview Questions

  10. Summary

Problem Statement

Design (or architect) a hardware test system that:

  1. Sequences tests under software control (pass/fail, limits, logging)
  2. Stimulates and measures the DUT across DC, analog, digital, and optionally RF
  3. Routes many instrument channels to many DUT pins (or many DUT sites) reliably
  4. Powers the DUT in the correct order with protection
  5. Supports environmental stress when required (temperature, burn-in)
  6. Feeds results into analysis (yield, SPC, limit tuning)

Typical contexts: IC characterization, module/PCBA functional test, smartphone/RF front-end validation, power-management IC bring-up, reliability (HALT/HASS).

Architecture Overview

Think in layers—each layer has clear ownership. Problems usually appear at interfaces (fixture ↔ DUT, switch ↔ RF path, trigger ↔ digitizer).

flowchart TB
  subgraph L5 [Data & analysis]
    DB[(Results DB / SPC)]
    LIM[Limit sets & yield]
  end

  subgraph L4 [Environmental]
    TEMP[Thermal / chamber]
    BURN[Burn-in / HALT-HASS]
  end

  subgraph L3 [Power]
    SEQ[Power sequencing]
    BULK[Bulk DC rails]
    PROT[OVP / OCP]
  end

  subgraph L2 [DUT interface]
    LB[Loadboard / fixture]
    COND[Signal conditioning]
    SW[Switch matrix]
    KEL[Kelvin / 4-wire]
  end

  subgraph L1 [Instruments]
    SMU[SMU]
    AWG[AWG]
    DGT[Digitizer / scope]
    RF[VNA / spectrum analyzer]
    DIO[Digital I/O / pattern]
  end

  subgraph L0 [Bus & controller]
    BUS[PXI / PXIe / LXI / coax RF]
    CTRL[Test controller / sequencer]
  end

  CTRL --> BUS --> SMU & AWG & DGT & RF & DIO
  SMU & AWG & DGT & RF & DIO --> LB
  LB --> COND --> SW --> KEL
  KEL --> DUT[(DUT)]
  SEQ --> DUT
  TEMP --> DUT
  DUT --> DB
  DB --> LIM

┌─────────────────────────────────────────────────────────────┐
│  Test controller (TestStand, LabVIEW, Python/PyVISA, …)     │
├─────────────────────────────────────────────────────────────┤
│  Instrument bus (PXI/PXIe, LXI, coax for GHz RF)            │
├──────────┬──────────┬──────────┬──────────┬───────────────┤
│   SMU    │   AWG    │ Digitizer│ VNA/SA   │ Digital I/O   │
├──────────┴──────────┴──────────┴──────────┴───────────────┤
│  DUT interface: loadboard → conditioning → switch → Kelvin  │
├─────────────────────────────────────────────────────────────┤
│  Power subsystem (sequencing, bulk rails, protection)         │
├─────────────────────────────────────────────────────────────┤
│  Thermal / environmental (optional)                         │
├─────────────────────────────────────────────────────────────┤
│  Data & analysis (logging, SPC, Cpk, limit feedback)        │
└─────────────────────────────────────────────────────────────┘
                              │
                              ▼
                            [ DUT ]

System Layers

Layer 0 — Test controller

The software brain of the system. It owns:

  • Test order and branching (setup → measure → teardown)
  • Pass/fail against limits
  • Data logging and MES/handoff to factory systems
  • Driver calls to every instrument

Common platforms: NI TestStand, LabVIEW, Python with PyVISA / PyVISA-py, C# with IVI drivers, or a custom sequencer built in-house.

Design note: Keep instrument abstraction in software (which resource is the “3.3 V SMU on site 2”) separate from physical routing in the fixture—otherwise every engineering change becomes a code change.

Layer 1 — Instrument bus

The physical backplane (or cabling plan) that ties instruments together.

Bus Typical use Strengths Watch-outs
PXI / PXIe Production ATE, tight multi-instrument sync Star trigger, 10 MHz ref, modular density Chassis size, vendor lock-in, thermal in rack
LXI Bench and distributed racks over LAN Familiar networking, room to spread instruments Sync via IEEE 1588 PTP; not as tight as PXI for ns-level alignment
Coax / point-to-point RF above a few GHz Best SI for VNA/SA paths No shared backplane—routing is fixture design

For RF work, you often leave the shared digital backplane and route coax from VNA ports through the switch matrix to the DUT launch.

Layer 2 — Instruments (functional blocks)

Mix and match these five blocks per DUT needs:

Block Role Typical measurements / stimulus
SMU (Source Measure Unit) Source V/I and measure simultaneously Id–Vd curves, leakage, PMIC rails, parametric IC test
AWG (Arbitrary Waveform Generator) Time-domain stimulus Protocol emulation, stress waveforms, baseband IQ
Digitizer / scope (PXI module) High-speed capture Eye diagrams, burst capture, time-aligned acquisition in ATE
VNA / spectrum analyzer Frequency-domain / RF S-parameters, return loss, NF, EVM, power flatness
Digital I/O / pattern generator Digital functional test JTAG, UART, SPI, I2C, high-speed pattern playback

SMU vs bulk power: SMUs are for precision per-pin or per-rail characterization. Bulk DC supplies (next layer) feed main rails with higher current and simpler regulation.

Layer 3 — DUT interface (where most hardware design happens)

The bridge between instruments and the DUT.

Loadboard / fixture

  • Custom PCB: pogo pins, ZIF, or socketed DUT
  • Requirements: signal integrity, controlled impedance, mechanical repeatability at volume
  • Document stack-up, via strategy, and keep-out for handlers/probers

Signal conditioning

  • Attenuators, amps, impedance matching, DC blocks between instrument and DUT
  • Match instrument output impedance to DUT pin expectation (especially RF and high-speed digital)

Switch matrix

  • Routes one instrument → many DUT pins or many DUTs → one instrument
  • Critical for throughput in multi-site test
  • RF matrices use SPDT/SP4T relay or solid-state switches—each path adds insertion loss and needs calibration

Kelvin (4-wire) sensing

  • Separate force and sense pairs
  • Removes cable and contact resistance from measurement
  • Essential for sub-milliohm resistance and precision current sourcing

Layer 4 — Power subsystem

Separate from SMUs:

Element Purpose
Bulk DC supplies Main rails (5 V, 3.3 V, battery emulator, …)
Sequencing Power-on order (core before I/O, rails before RF)—wrong order damages many ICs
Per-rail monitoring Current draw per rail for fault detection
OVP / OCP Protect DUT and fixture on short or plug misalignment

Design tip: Define a power state machine (OFF → PRECHARGE → ON → MEASURE → OFF) and interlock with the sequencer so tests never run on an illegal rail state.

Layer 5 — Thermal / environmental

Mode Use
Temperature forcing Hot/cold plate, chamber—characterize over spec
Burn-in / HALT / HASS Reliability screens, early life failure
Humidity / vibration Specialized reliability (less common in standard ATE)

Environmental hardware must be reflected in safety interlocks (door open → rails off) and soak timers in the test plan.

Layer 6 — Data and analysis

Closes the loop from hardware to factory quality:

  • Results database — per-unit serial, per-test value, timestamp, station ID
  • SPC — Cpk, control charts, drift detection across stations
  • Limit sets — adjusted from statistical feedback (with change control in production)

Without this layer, the bench “works” but the line cannot prove yield or debug systemic failures.

Three Design Problems That Dominate Real Projects

1. Signal integrity on the fixture

Concern Mitigation
Controlled impedance traces Match Zo to system (50 Ω RF, 100 Ω diff digital, etc.)
Stub length on high-speed pins Keep stubs short; route critical nets first in layout
RF launch Proper ground co-planarity, launch transition to coax
Crosstalk Guard traces, spacing, differential pairs where possible

At GHz test rates, the fixture is part of the measurement—not just a wire bundle.

2. Switch matrix architecture

Topology Pros Cons
Full crossbar Flexible routing, lower path count for some routes Cost, complexity, isolation challenges
Sparse tree (multiplex tree) Cheaper, fewer relays Higher insertion loss, longer paths
Segmented Balance cost and sites Engineering trade per product family

RF reality: Every relay adds roughly 0.5–1 dB insertion loss (typical order of magnitude—verify per part). Budget loss in your VNA calibration and margin to spec.

3. Timing and synchronization

Multi-instrument tests need deterministic triggering:

  • PXI: Star trigger bus + 10 MHz reference—industry default for aligned AWG + digitizer + digital pattern
  • LXI: IEEE 1588 PTP for sub-microsecond sync over Ethernet when PXI is not used

Misaligned triggers show up as “random” failures on digital capture or RF measurements that only fail on some stations.

Design-for-Testability (DFT) Overview

In Design-for-Testability (DFT), “common system design” means architectural and structural practices that make silicon (and the systems built from it) controllable, observable, and diagnosable during manufacturing test and bring-up.

DFT exists at multiple levels:

Level What you are testing Typical access
Chip (die) Logic, memories, analog macros Scan, BIST, JTAG, probe pads
Subsystem / IP CPU core, NoC, PHY, NPU tile Wrapped cores (IEEE 1500), IJTAG
Board Interconnect, power, boot Boundary scan, functional ATE
System OS boot, workloads, thermal System-level test (SLT), field diagnostics

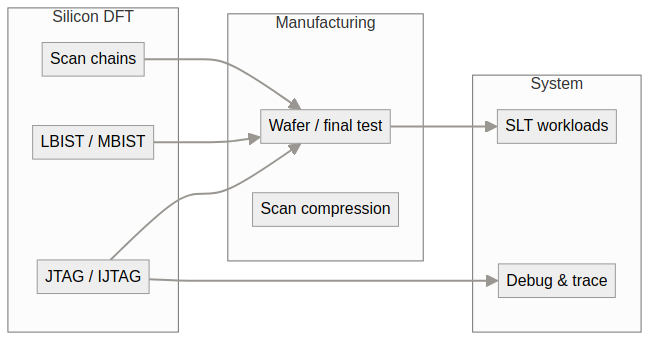

flowchart LR
  subgraph silicon [Silicon DFT]
    SCAN[Scan chains]
    BIST[LBIST / MBIST]
    JTAG[JTAG / IJTAG]
  end
  subgraph mfg [Manufacturing]
    ATE[Wafer / final test]
    COMP[Scan compression]
  end
  subgraph system [System]
    SLT[SLT workloads]
    DBG[Debug & trace]
  end
  SCAN --> ATE
  BIST --> ATE
  JTAG --> ATE
  ATE --> SLT
  JTAG --> DBG

Common DFT Techniques (Industry Categories)

1. Scan-based design (most common DFT method)

Scan replaces ordinary flip-flops with scan flip-flops so internal state becomes controllable (shift in patterns) and observable (shift out results).

Concept Description
Scan chains Flip-flops connected serially; shift in test vectors, shift out responses
Full scan Nearly all sequential elements in scan—highest coverage, more area/timing impact
Partial scan Only selected flops scanned—lower overhead, reduced controllability
Multiple scan chains Parallel chains to reduce shift time and tester depth

Benefits: Very high fault coverage, enables ATPG (Automatic Test Pattern Generation), industry standard for ASICs and SoCs.

2. Built-In Self-Test (BIST)

On-chip hardware tests itself—reduces tester pattern volume and enables field/diagnostic test.

Type Targets Typical blocks
Logic BIST (LBIST) Combinational + sequential logic LFSR (pattern generator), MISR (signature analyzer)
Memory BIST (MBIST) SRAM, DRAM, embedded memories March engines, retention, address-decoder tests
Analog / mixed-signal BIST PLL, ADC/DAC, SerDes Loopback, DC/AC stimulus, signature comparison

3. Boundary scan / JTAG (IEEE 1149.1)

Standardized chip- and board-level test access without physical probes on every net.

Element Role
TAP controller State machine driven by TCK, TMS
TDI / TDO Serial scan in/out
Boundary scan cells Around I/O—test interconnect and pin logic

Uses: Board connectivity (opens/shorts), pin testing, FPGA configuration, debug, in-system programming.

Common in: CPUs, FPGAs, networking gear, automotive ECUs.

4. Design partitioning for test

Architectural organization to simplify test and diagnosis.

  • Modular hierarchy and IP wrappers (IEEE 1500)
  • Independent clock domains and power domains
  • Test isolation (clamp outputs, disable functional paths)
  • Wrapper insertion around reusable IPs

Benefits: Easier diagnosis, parallel test of blocks, simpler patterns per partition.

5. Clock and reset DFT design

Clocks and resets are primary DFT risk areas.

Technique Purpose
Test clocks Controlled, slower or muxed clocks in test mode
Scan-enable clocks Safe shifting without functional clock glitches
Clock multiplexers Select functional vs test clock
Reset controllability Known state before scan capture
CDC test support Avoid metastability during scan/at-speed

Goals: Reliable scan operation, at-speed test feasibility, timing closure in test mode.

6. At-speed testing

Tests logic at operational frequency—catches delay defects missed by slow scan.

Method Idea
Launch-on-capture (LOC) Launch transition with functional clock edge; capture on capture edge
Launch-on-shift (LOS) Launch during shift (where allowed by methodology)

Targets: Transition faults, path delay faults, small-delay defects.

Critical for: High-performance CPUs, GPUs, networking ASICs.

7. Test compression

Advanced nodes produce enormous scan data volume.

Method Benefit
Scan compression Fewer tester cycles and less ATE memory
Embedded deterministic test (EDT) On-chip decompressor feeds scan chains
Compactors Compress scan-out before sending to tester

Essential for cost-effective manufacturing on large SoCs.

8. Memory repair and redundancy

Improves manufacturing yield for dense SRAM arrays.

  • Spare rows/columns
  • Fuse / eFuse programming of repair addresses
  • Redundant memory blocks (cache repair)

Heavily used in SRAM, cache, and on-chip memory subsystems.

9. Power-aware DFT

Test modes can draw more power than functional modes (all nodes toggling during scan).

Technique Purpose
Scan chain staggering Limit simultaneous switching
Shift-power reduction Reduce toggling during shift
Power-domain-aware scan Respect isolation in multi-VD designs
Low-power ATPG Patterns that minimize switching
Clock gating in test mode Block unnecessary clock trees

Important for mobile SoCs, AI accelerators, and battery-powered devices.

10. IEEE DFT standards

Standard Purpose
IEEE 1149.1 JTAG / boundary scan
IEEE 1500 Embedded core test (wrapper registers)
IEEE 1687 IJTAG — internal instrument access network
IEEE 1149.6 High-speed AC interconnect test
IEEE 1838 3D IC die-stack test access

11. Debug and observability (often paired with DFT)

Not strictly manufacturing test, but co-planned with DFT.

  • Trace buffers and embedded logic analyzers
  • Performance counters
  • Silicon debug buses
  • Error logging registers

Common in CPUs, FPGA SoCs, and automotive SoCs for post-silicon debug.

12. Fault models used in DFT

DFT structures target specific defect mechanisms:

Fault model What it represents
Stuck-at (SA) Node stuck at 0 or 1
Transition Slow-to-rise / slow-to-fall
Bridging Two nets shorted
Open Broken connection (variant modeling)
Path delay Excessive delay on a path
Small-delay defect Subtle timing failures at speed

13. System-level test (SLT)

Performed after manufacturing structural test—runs realistic workloads.

Characteristic Examples
Real software stacks Boot OS, run drivers
Stress interaction Memory stress, thermal + performance
Use cases Servers, AI accelerators, automotive ECUs

Examples: booting Linux, running memory stress, validating high-speed links under traffic.

Modern SoC DFT Architecture

A typical advanced SoC integrates:

┌────────────────────────────────────────────────────────────┐
│  Hierarchical scan chains + compression (EDT)              │
│  MBIST controllers (per memory cluster)                      │
│  JTAG / IJTAG network (debug + instrument access)           │
│  On-chip clock controller (OCC) for at-speed test            │
│  Power-aware scan + domain isolation                       │
│  Repair / fuse controller (memory yield)                     │
│  LBIST (optional, field/mission-mode test)                 │
└────────────────────────────────────────────────────────────┘

DFT Tradeoffs, Tools, and Flow

Tradeoffs

Goal Typical tradeoff
Higher coverage More area and routing overhead
Faster test time More scan chains, compression logic, tester channels
Better observability Higher shift power, longer patterns
More compression More design complexity, timing on decompressor
At-speed testing Harder timing closure in test mode

Common tool vendors

Vendor Typical tool categories
Synopsys DFT Compiler, TetraMAX ATPG, TestMAX
Cadence Modus DFT, Virtuoso integration
Siemens EDA Tessent (scan, ATPG, diagnosis)

Categories: scan insertion, ATPG, MBIST synthesis, formal DFT verification, pattern simulation, diagnosis.

Typical DFT flow

RTL design
  → DFT rule checking (lint for testability)
  → Scan insertion
  → MBIST insertion
  → ATPG pattern generation
  → Fault simulation / coverage analysis
  → Pattern validation (timing, power)
  → Silicon manufacturing test (wafer + package)
  → Diagnosis and yield analysis

ASIC vs FPGA DFT Differences

Aspect ASIC (standard-cell SoC) FPGA
Scan Full custom scan insertion, ATPG, compression Limited—device is pre-fabricated; use vendor internal scan or soft logic test
MBIST Custom MBIST for embedded SRAMs Use FPGA block RAM test features or soft MBIST IP
BIST LBIST/MBIST designed into tapeout Rare on-die LBIST; rely on configuration bitstream checks
JTAG Custom TAP + IEEE 1500/1687 Vendor hardware JTAG for config and debug (Xilinx Vitis, Intel Quartus)
At-speed LOC/LOS with OCC on functional clocks Timing validated by static timing analysis; at-speed via functional test on board
Repair eFuse repair for memories Not applicable—defective parts discarded
Cost model DFT affects yield and tester $/die DFT affects bring-up time and board test, not wafer yield

Interview sound bite: ASIC DFT is about manufacturing fault coverage at scale; FPGA DFT is about configuration integrity, boundary scan on the board, and debug access to pre-built silicon.

Scan Chain Architecture in Detail

Scan flip-flop structure

A scan cell multiplexes functional mode vs scan mode:

Functional: D → [FF] → Q  (normal operation)

Scan mode:  scan_in → [FF] → scan_out
            (serial shift when scan_enable active)

Scan operations (classic flow)

Phase Action
Shift Apply scan_enable; pulse test clock to load/unload chain
Capture Release scan_enable; one functional clock captures combinational response into flops
Compare Shift out captured values; compare to golden response (on tester or MISR for BIST)

Multi-chain architecture

         ┌── Chain 0 ──┐
Tester ──┼── Chain 1 ──┼── Parallel load/unload (fewer cycles)
         └── Chain N ──┘
              │
         Decompressor (EDT)  ← compressed patterns from tester
              │
         Compactor  → compressed scan-out to tester

Design rules:

  • Balance chain lengths to minimize shift time waste
  • Avoid long combinatorial paths between chains without pipeline consideration
  • Place lockup latches on clock-domain boundaries crossing into scan paths

MBIST Algorithms

MBIST engines apply algorithmic March tests to memory arrays.

Common March tests (conceptual)

Test / variant What it detects (simplified)
March C / C− Stuck-at faults in cells, some coupling
Checkerboard Adjacent-cell interaction patterns
Walking 1/0 Address decoder and cell faults
Retention Hold time / leakage-related memory loss

A March element is often written as operations on each cell, e.g. ↑(w0); ↑(r0,w1); … meaning traverse addresses ascending with write/read operations.

MBIST block diagram

[ MBIST controller ] ──► [ Address generator ]
        │                      │
        ▼                      ▼
   [ Algorithm ROM ]     [ Memory under test ]
        │                      │
        └──── Compare ◄── Read data / expected

Production flow: MBIST runs on tester or self-started after reset; failures map to repair fuse records if redundancy exists.

IJTAG Architecture (IEEE 1687)

IJTAG extends JTAG to access internal instruments (sensors, monitors, custom TDRs) through a standardized network—not only pad boundary cells.

Concept Role
SIB (Segment Insertion Bit) Enables/disables branches of instrument network
TDR (Test Data Register) Holds control/status for an instrument
Host scan path IEEE 1149.1 TAP still provides entry
Instrument connectivity language (ICL) Describes network topology (like BSDL for 1149.1)
TAP (1149.1) → Host interface → SIB → Instrument TDR → [PLL monitor]
                              └→ SIB → [Temperature sensor]
                              └→ SIB → [Custom IP status]

Why it matters: Hierarchical SoCs need post-silicon bring-up without adding pads per internal node. IJTAG is the plumbing for power, clock, and analog bring-up scripts.

ATPG Algorithms and Fault Coverage Math

Fault coverage definition

Fault coverage = (number of detected faults ÷ total faults in fault list) × 100%

In practice:

  • Fault list is generated from netlist + fault model (e.g. all SA faults on gates/ports)
  • Detected = fault causes observable difference on outputs for at least one pattern
  • Redundant / untestable faults are often excluded from denominator (methodology-dependent)

Stuck-at fault model

Each net/site modeled as SA0 and SA1. For N fault sites, up to 2N stuck-at faults (fewer after equivalence collapsing).

Transition fault model

Each gate output has slow-to-rise and slow-to-fall faults—requires two-pattern tests (init + launch) and often at-speed capture.

Common ATPG algorithms (names to know)

Algorithm Idea
D-algorithm Five-valued logic (0,1,X,D,D’); propagates fault effects to outputs
PODEM Backtrack on inputs to justify and propagate faults
FAN Improved PODEM with multiple backtrack reduction
Timing-aware ATPG Uses SDF timing for delay and small-delay defects

Modern commercial tools combine structural ATPG + compression + low-power fill.

Example coverage reporting

If fault list has 1,000,000 collapsed SA faults and patterns detect 995,000, coverage = 99.5%.

Remaining faults may be redundant, partially detected, or need additional patterns / fault model (transition, bridging).

Physical-Design Impacts of DFT

DFT is not “logic only”—it reshapes floorplan, routing, and timing.

Impact area DFT effect
Area Scan MUX on flops (~5–15% sequential area, design-dependent)
Routing congestion Scan chains snake across die—compete with functional routes
Timing Scan mode mux delays; hold fixes on shift paths
Clock tree Extra muxes, OCC, separate test clock roots
Power grid Shift/capture current spikes—IR drop analysis in test mode
Pad frame JTAG pins, compression IO, MBIST status pins
Fuse banks Repair metadata—physical region near memories

Sign-off: Static timing in functional mode and scan/at-speed test modes; power analysis for worst-case shift.

DFT for AI Accelerators

AI/ML silicon (GPUs, TPUs, NPUs) stresses DFT differently:

Challenge DFT response
Massive SRAM (weights, activations) Distributed MBIST per bank + repair
Large regular arrays Partitioned scan; tile-level wrappers
High power density Aggressive shift staggering, low-power ATPG
SerDes / HBM interfaces Boundary + loopback BIST; AC JTAG (1149.6)
Reduced numeric precision Functional SLT with tensor ops—catches array interaction bugs
Multi-die (chiplet) IEEE 1838 die-to-die test access

SLT is critical: Structural scan won’t catch many data-path interaction bugs in systolic arrays—workload-based test (short inference kernels) complements ATPG.

Automotive DFT and ISO 26262

Automotive ECUs require DFT that supports safety, not only yield.

ISO 26262 theme DFT / test connection
Fault detection Manufacturing test proves low latent defect rate
Diagnostic coverage LBIST, watchdogs, ECC on memories—aligned with safety mechanisms
Lifecycle Field logging + debug (JTAG/IJTAG) for failure analysis
Independence Safety-critical blocks tested with known good patterns; FMEDA uses DPPM from test data
Requirements trace DFT features documented in safety case (what manufacturing test guarantees)

Practice: Automotive programs often require 100% stuck-at (or agreed coverage) + transition coverage targets + MBIST on all safety-related memories + scan chain integrity tests on every lot.

DFT Interview Questions

Fundamentals

  1. What is the difference between DFT and design for debug?
  2. Why is scan the dominant manufacturing test method for digital ASICs?
  3. Explain stuck-at vs transition fault models.
  4. What problem does scan compression solve?

Scan and ATPG

  1. Walk through shift → capture → shift-out in a scan test.
  2. What is full scan vs partial scan?
  3. What is launch-on-capture and when do you need an OCC?
  4. How do you calculate fault coverage? What are redundant faults?

BIST and memory

  1. Compare LBIST vs MBIST vs external ATPG.
  2. What is a March test? Why are multiple March elements used?
  3. How does memory repair improve yield?

Standards and system

  1. What signals does IEEE 1149.1 JTAG provide?
  2. How does IJTAG (1687) differ from boundary scan?
  3. What is SLT and why is it used after wafer/final test?
  4. ASIC vs FPGA: how does DFT differ?

Architecture / tradeoffs

  1. Trade off more scan chains vs fewer, longer chains.
  2. How does power-aware DFT reduce shift-induced IR drop?
  3. Name three physical design impacts of inserting scan.

Scenario

  1. An SoC fails only at high temperature on SLT but passes scan at room—what might you suspect?
  2. AI accelerator has 512 MB on-chip SRAM—outline your DFT strategy.

Summary

Part A — ATE / DUT

Layer You are designing…
Controller Sequencer, limits, logging, drivers
Bus PXIe vs LXI vs coax RF plan
Instruments SMU, AWG, digitizer, VNA/SA, digital I/O mix
DUT interface Loadboard, conditioning, switches, Kelvin
Power Sequencing, bulk rails, protection
Environment Temp, burn-in (when required)
Data DB, SPC, limit feedback

ATE focus: Most custom hardware effort is the fixture + switch matrix + power sequencing; most debug time is SI, switch loss, and trigger alignment.

Part B — Silicon DFT

Technique Primary purpose
Scan + ATPG Manufacturing digital fault coverage
MBIST / LBIST Memory and logic self-test
JTAG / IJTAG Board test, debug, instrument access
Compression Tester time and cost
At-speed Delay and transition defects
Repair / power-aware Yield and safe test power
SLT Real workload validation after structural test

DFT focus: Scan and compression dominate digital ASIC cost and quality; MBIST + repair dominate memory yield; JTAG/IJTAG bridge silicon to board and bring-up.
